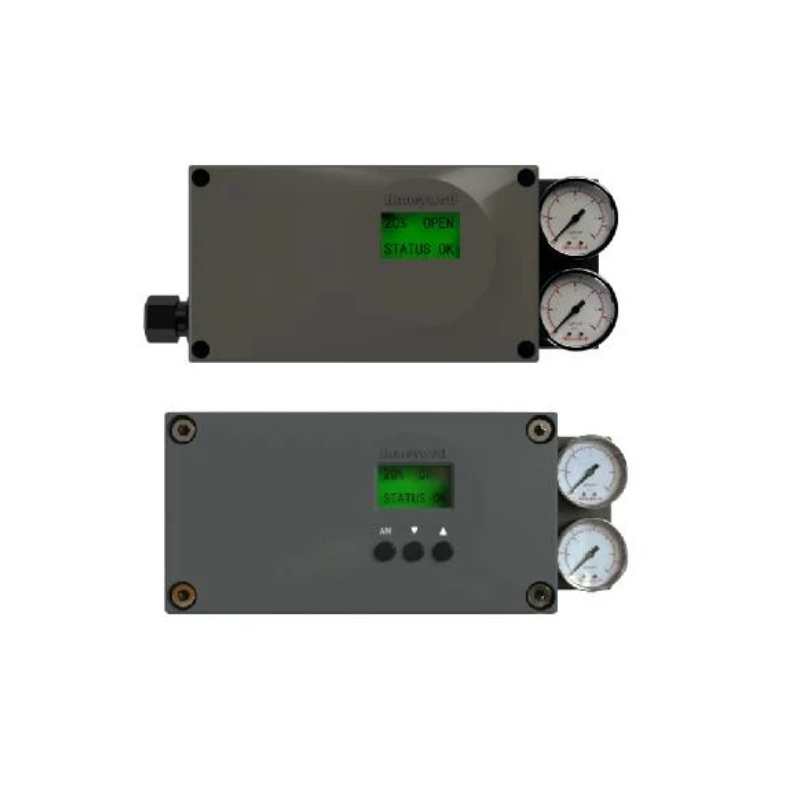

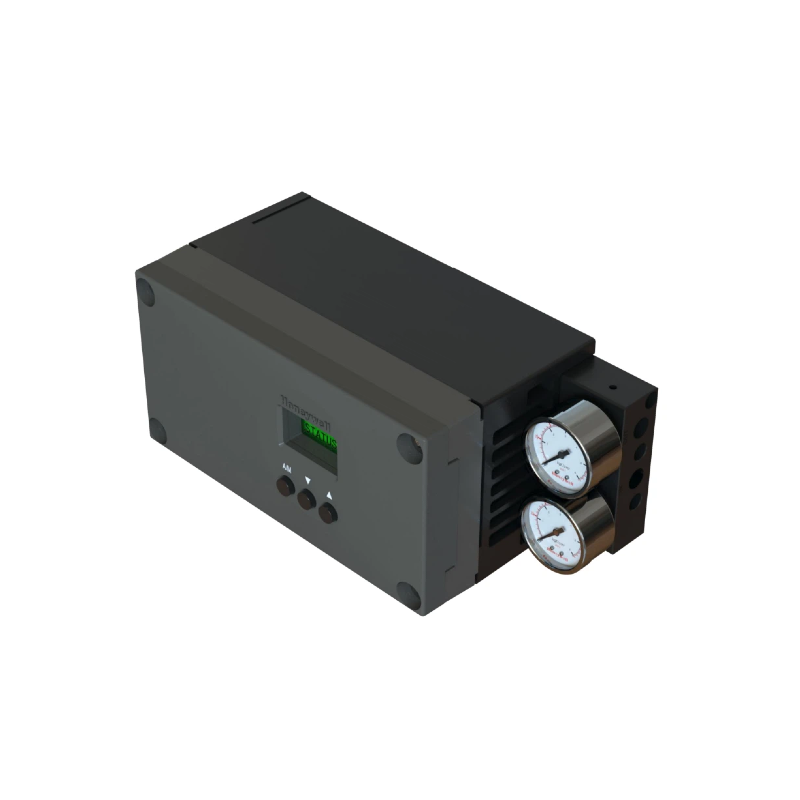

Honeywell霍尼韦尔SVP2300/2600智能阀门防爆定位器
作为Honeywell SmartLine 产品系列的成员，SVP2300/2600 是一款较高性能智能阀门定位器。SVP2300/2600 智能阀门定位器接受来自控制系统的4~20mA阀位信号，通过A/D转换得到阀位设定值；同时通过位置传感器得到实际的阀位反馈信息；两者经过控制软件的计算处理，从而控制气动执行机构的动作，驱动阀位到达设定值。
产品特点：
1.定位准确度高，达0.5%F.S。
2.操作无需开壳，高防护等级下实现就地操作
3.结构简单，体积小，可安装在小型执行机构上
4.自动整定，自动诊断，阀门特性曲线可组态设定
5.机械零件少，抗振性能较好
6.可就地或远程进行菜单设置
7.低功耗、低耗气量、低运行成本
8.采用二线制4⁓20mA标准信号
9.HART ® (7.0 版本)

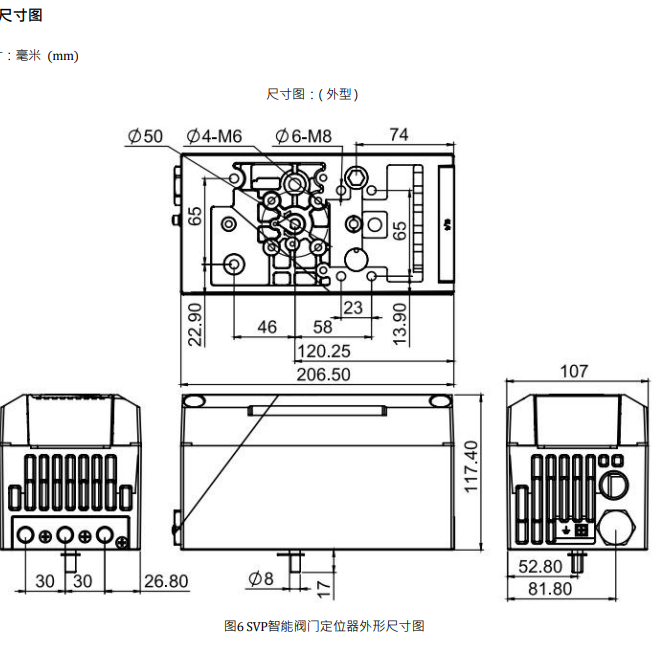

安装和尺寸图：

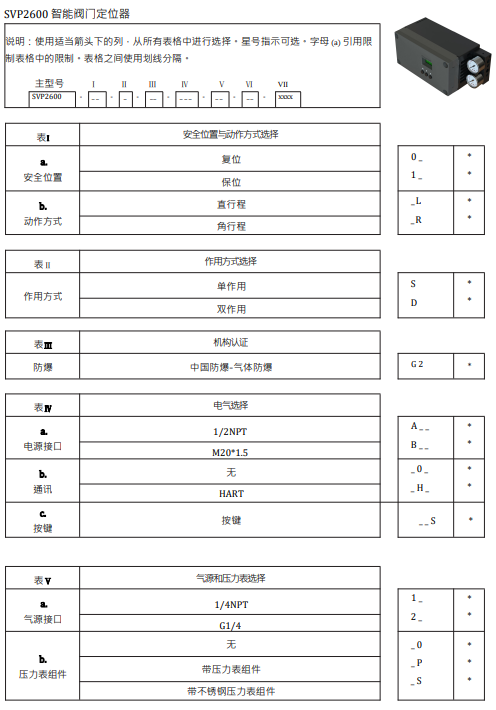

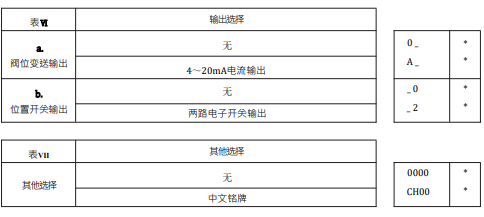

选型说明:
推荐型号：
SVP2300D0LS00A0010000000
SVP2300D1RS00A0010000000
SVP2300D0LD00A0010000000
SVP2300D1RD00A0010000000
SVP2300D0LSG1A0010000000
SVP2300D1RSG1A0010000000
SVP2300D0LDG1A0010000000
SVP2300D1RDG1A0010000000
SVP2300R0LS00A0010000000
SVP2300R1RS00A0010000000
SVP2300R0LD00A0010000000
SVP2300R1RD00A0010000000
SVP2300R0LSG1A0010000000
SVP2300R1RSG1A0010000000
SVP2300R0LDG1A0010000000
SVP2300R1RDG1A0010000000
SVP2300D0LS00A001P000000
SVP2300D1RS00A001P000000
SVP2300D0LD00A001P000000
SVP2300D1RD00A001P000000
SVP2300D0LSG1A001P000000
SVP2300D1RSG1A001P000000
SVP2300D0LDG1A001P000000
SVP2300D1RDG1A001P000000
SVP2300R0LS00A001P000000
SVP2300R1RS00A001P000000
SVP2300R0LD00A001P000000
SVP2300R1RD00A001P000000
SVP2300R0LSG1A001P000000
SVP2300R1RSG1A001P000000
SVP2300R0LDG1A001P000000
SVP2300R1RDG1A001P000000
SVP2300D0LS00AH010000000
SVP2300D1RS00AH010000000
SVP2300D0LD00AH010000000
SVP2300D1RD00AH010000000
SVP2300D0LSG1AH010000000
SVP2300D1RSG1AH010000000
SVP2300D0LDG1AH010000000
SVP2300D1RDG1AH010000000
SVP2300R0LS00AH010000000
SVP2300R1RS00AH010000000
SVP2300R0LD00AH010000000
SVP2300R1RD00AH010000000
SVP2300R0LSG1AH010000000
SVP2300R1RSG1AH010000000
SVP2300R0LDG1AH010000000
SVP2300R1RDG1AH010000000
应用领域
能源
化工
