FEATURES

1.Whisper Trim™ III or WhisperFlo™ cages used in FBD or FBT valves can reduce noise produced by high flow rates and large pressure drops.

2.Regeneration of valve noise is significantly reduced by reducing the outlet flow velocity with an expanded outlet design.

3.The design eliminates gasketing problems caused by thermal expansion and contraction of long parts, such as the cage assembly.

4.The ENVIRO-SEAL™ or HIGH-SEAL packing system options are available. These packing systems provide excellent sealing, guiding, and loading force transmission.

SPECIFICATIONS

Certifications

CUTR, PED, CRN, Fugitive Emission, NACE

Critical Service

Noise Abatement, Steam Conditioning, Outgassing

Flow Characteristics

Linear

Material

Carbon Steel, Stainless, Duplex, Alloy, Cast Iron

Operating Temperature

Standard Temperature, High Temperature

Pressure Class

ASME

Process Connection Type

Flanged, Butt Weld, RTJ

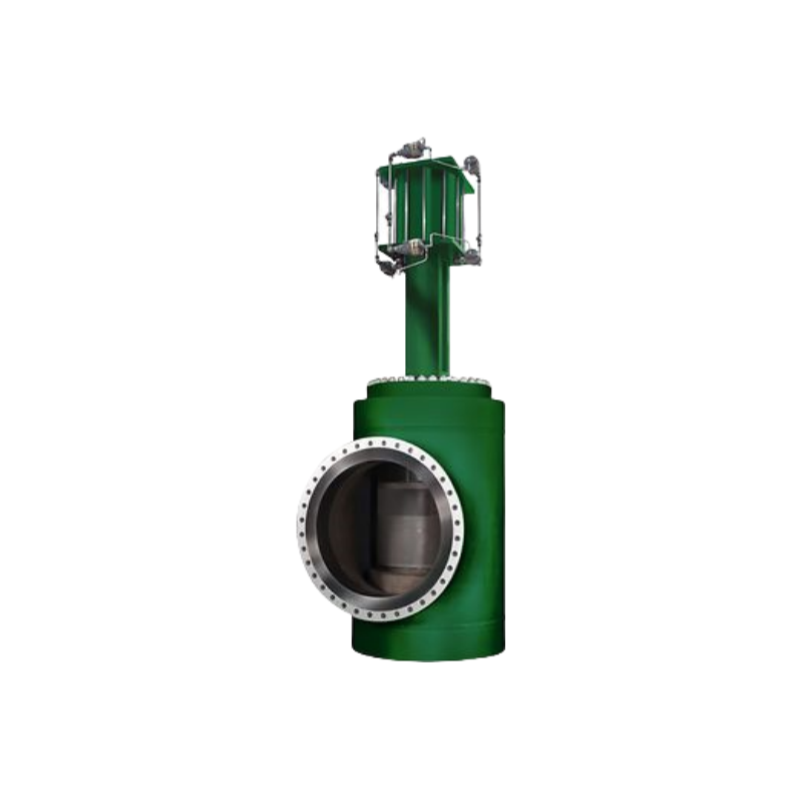

Pictures show
