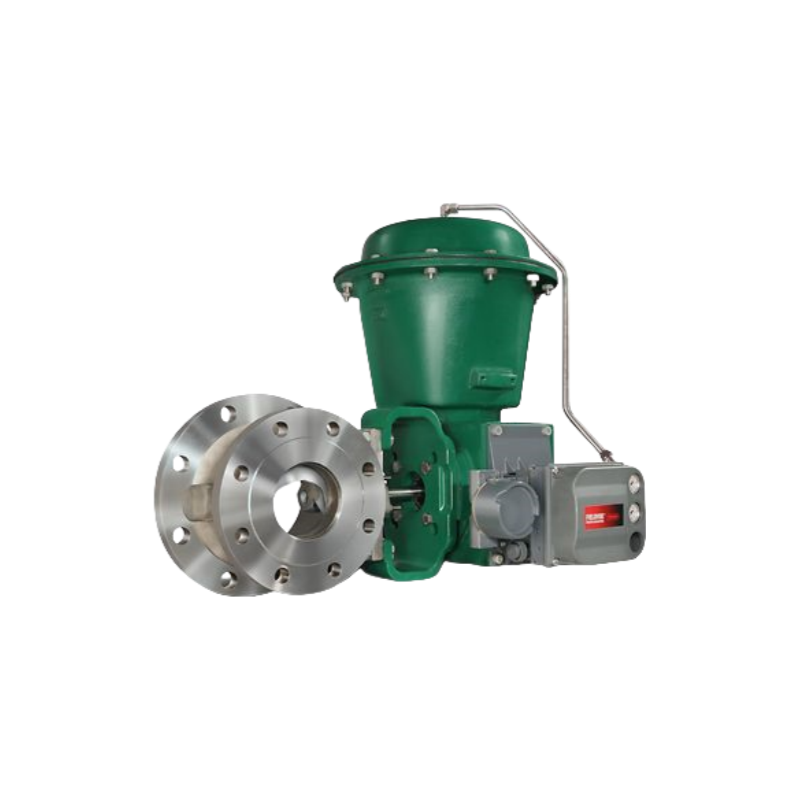

Fisher Vee-Ball V150E Control Valve
The Fisher V150E Vee-Ball control valve features a flanged, expanded outlet design. The outlet flange is one standard line size diameter larger than the inlet. The expanded outlet geometry streamlines the flow through the valve as the flow area increases from inlet to outlet.
FEATURES
Trim components are interchangeable with existing Fisher V150, V200, and V300 series B valves.
Flanged valve body design eliminates exposed line flange bolting, reduces alignment and installation time, and promotes secure valve installations and piping integrity.
Precision machined parts, pressure-balanced seal, and low friction bearing designs allow smooth, precise movement of the ball.
Precise contouring of the Vee-Ball provides a modified equal percentage flow characteristic.
SPECIFICATIONS
Certifications
ATEX, CUTR, PED, CRN, Fugitive Emission, NACE
Critical Service
Noise Abatement, Cavitation, Dirty Service, Erosive, Low Flow, General Service
Flow Characteristics
Equal Percentage
Material
Stainless
Operating Temperature
Standard Temperature
Pressure Class
ASME
Process Connection Type
Flanged
Shutoff Class
Class IV (FCI 70-2)
Valve Size
NPS 3x4, NPS 4x6, NPS 6x8, NPS 8x10, NPS 10x12
Valve Size Standard
NPS
