FEATURES

1.Rugged cage guiding provides high valve plug stability, which reduces vibration and mechanical noise.

2.Streamlined flow passages in the ED, EAD, and EDR valves provide excellent capacities and flow.

3.Increased wear resistance of hardened stainless steel trim means longer-lasting service.

4.Use of multiple graphite piston rings permit Class IV shutoff up to 593°C (1100°F). Use of C-seal trim permits Class V shutoff up to 593°C (1100°F).

SPECIFICATIONS

Certifications

SIL capable, Fugitive Emission, NACE

Critical Service

Noise Abatement, Cavitation, Steam Condition, Erosive, Low Flow, Corrosive, General Service, Outgassing, Flashing

Flow Characteristics

Equal percentage, Linear, Special Characterization, Quick Opening

Material

Carbon Steel, Stainless, Alloy

Operating Temperature

High Temperature

Pressure Class

PN, ASME

Process Connection Type

Flanged, Butt Weld, RTJ, Threaded, Socket Weld

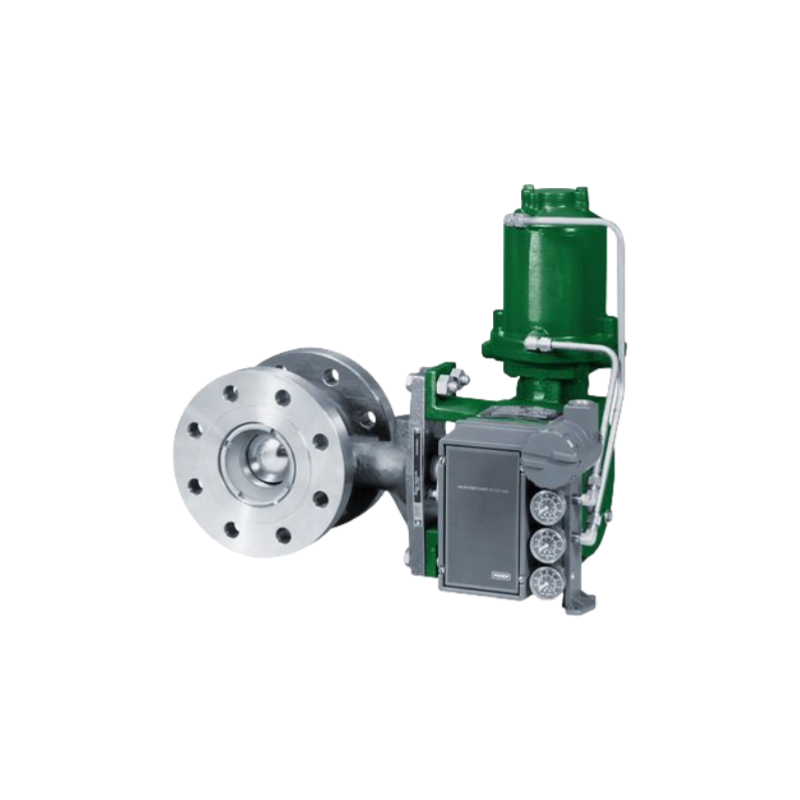

Pictures show
