Fisher 3620JP
The Fisher 3620JP electro-pneumatic dual-acting positioners can be used with rotary actuators and precisely position control valves used in throttling applications. These positioners are rugged and provide valve positioning proportional to the DC current input signal and are mounted as a unit to the actuator housing.
FEATURES
1.The positioner provides accurate, fast response and can withstand the vibrations of most plant environments. Low steady-state air consumption contributes to efficient operation.
2.Most of the parts for 3620JP positioners are interchangeable, requiring fewer spare parts to support these positioners.
3.With the cover removed, zero span and cross-over adjustments are easily accessible and can be made with a screw driver.
4.Easily adjustable minor loop gain fine tunes the positioner to optimize dynamic response for each specific actuator size and application.
SPECIFICATIONS
Communication Protocol
4-20mA Analog
Data Interface
Wired
Diagnostics
No
Input Signal
Electric
Max Outlet Pressure
150 psi
Mounting Type
Actuator Mounted
Operating Temperature
Standard Temperature, High Temperature
Position Control
Modulating
Process Control
Flow, Pressure, Temperature, Level

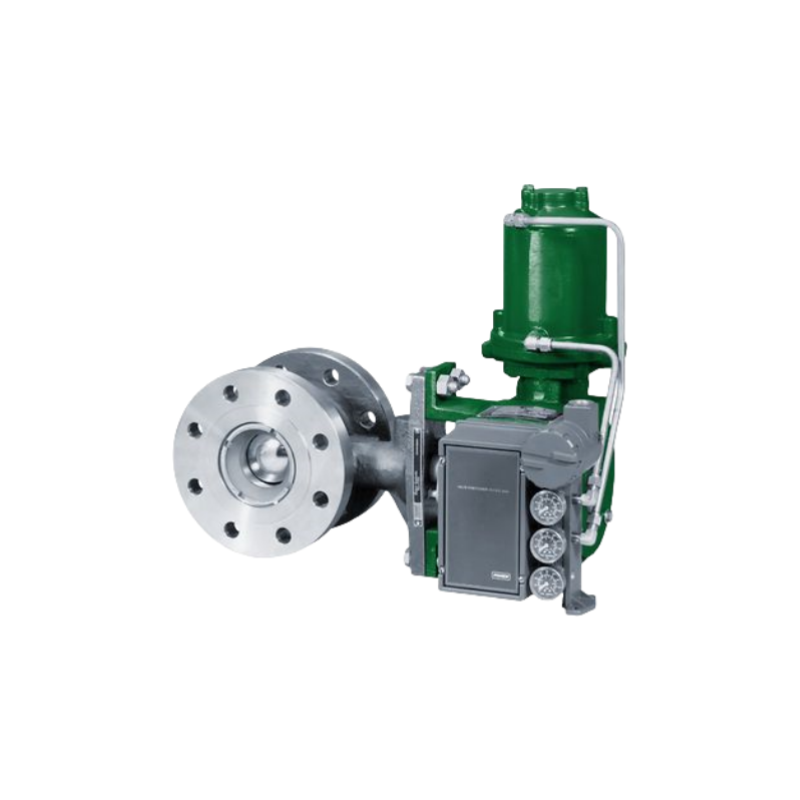

Pictures show
Application area
