SPECIFICATIONS

Size

50 through 400 mm

Ratings & Connections

Flanged: ANSI 150 – 1500, UNI-DIN 10 - 250

Welded: BW or SW

Screwed: NPT 3/4'' through 2'' (20 through 50 mm)

Body Materials

carbon steel; stainless steel; chrome-moly

Actuators

model 87/88 multi-spring diaphragm; cylinder

Trim

V-port or contoured plug; top and bottom guided

Inherent Characteristics

equal percentage

linear

quick opening

The Related Products

SVI1000 Series

SVI1000

SVI1000/G

SVI1000G/IM

SVI1000G/IM/PR

SVI1000G/IM/SW

SVI2-AP Series

SVI2AP-21113111

SVI2AP-21113121

SVI2AP-21123111

SVI2AP-21123121

SVI2AP-22113111

SVI2AP-22113121

SVI2AP-22123111

SVI2AP-22123121

SVI3  Series

SVI3-21111112

SVI3-21121112

SVI3-21111212

SVI3-21121212

Other Products

4700E 4700P 4000I/P

78-40 78-4 78-80H 08-80H

496-255 496-257 496-258

BR200 BR400

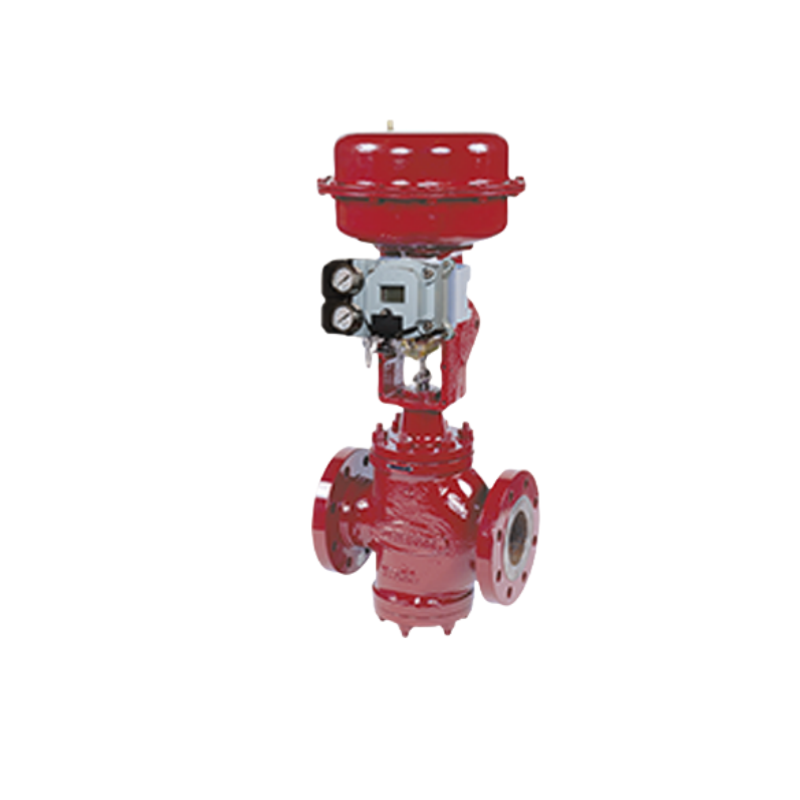

Pictures Show
