Masoneilan 21000 Series Single Port Valve

Baker Hughes offers the Masoneilan 21000 Series heavy top-guided globe valve for a wide range of automated process control applications. The 21000 Series product line features a single-ported design configuration, which permits numerous trim, actuation, and instrumentation solutions.

Online consultation

Details

SPECIFICATIONS

Size

3/4''through 8''(20 through 200 mm)

Ratings & Connections

Flanged: ANSI 150 – 2500, UNI-DIN 10 - 400

Welded: BW or SW

Screwed: NPT 3/4” through 2” (20 through 50 mm)

Body Materials

carbon steel; stainless steel; chrome-moly

Actuators

Model 87/88 multi-spring diaphragm; cylinder

Trim

single seat plug top guided; Lo-dB and anti-cavitation trims, single or double stage are available

Inherent Characteristics

linear or equal percentage

The Related Products

SVI1000 Series

SVI1000

SVI1000/G

SVI1000G/IM

SVI1000G/IM/PR

SVI1000G/IM/SW

SVI2-AP Series

SVI2AP-21113111

SVI2AP-21113121

SVI2AP-21123111

SVI2AP-21123121

SVI2AP-22113111

SVI2AP-22113121

SVI2AP-22123111

SVI2AP-22123121

SVI3 Series

SVI3-21111112

SVI3-21121112

SVI3-21111212

SVI3-21121212

Other Products

4700E 4700P 4000I/P

78-40 78-4 78-80H 08-80H

496-255 496-257 496-258

BR200 BR400

Pictures Show

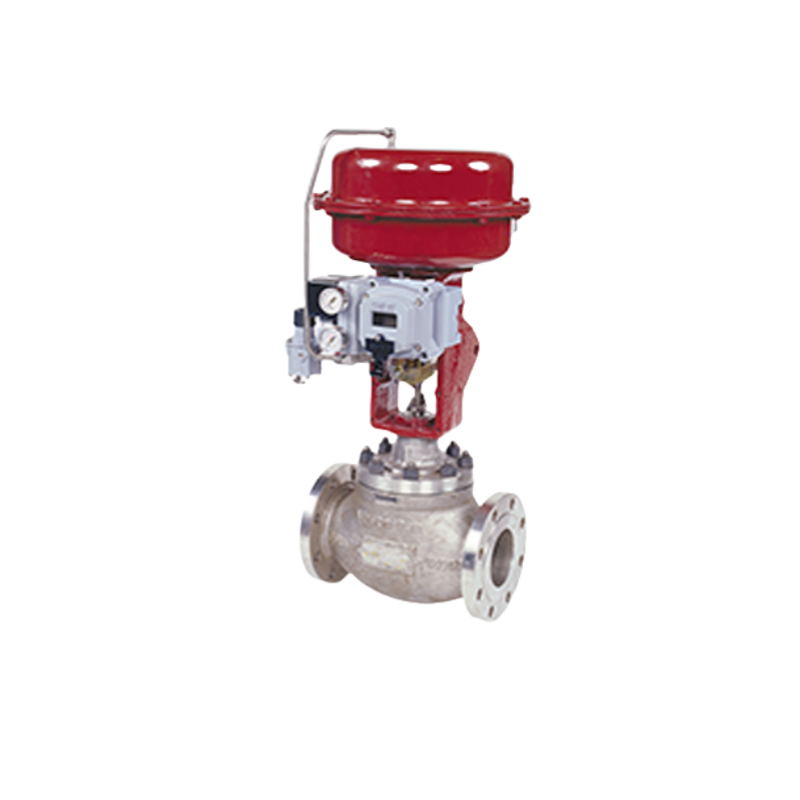

Masoneilan 21000 Series Single Port Valve
