RT Series RTCH High Torque Hydraulic Quarter
RTCH is a range of high torque hydraulic quarter turn actuators with materials selected to withstand the most hostile environmental conditions. They are suitable for all onshore and offshore applications, covering the majority of on-off and modulating valves.
The actuator is designed to provide maximum reliability and flexibility to cover a wide range of valves in all pressure classes.
FEATURES
1. Chromium plated guide bar to absorb transversel forces
2. Designed to provide high torque with minimum space and weight
3. Double acting or spring return compact design
4. Electroless nickel plated cylinder to minimise friction and prevent corrosion
5. Full stainless steel version available
6. Housing is manufactured in carbon steel material without any cast/grey/ductile iron or aluminum parts
7. Integral hand-pump available
8. Power module safety design allows replacement of the cylinder seals without any danger
9. Scotch yoke mechanism available in both canted or symmetrical executions
10. Totally sealed weatherproof housing that provides complete protection for all moving parts

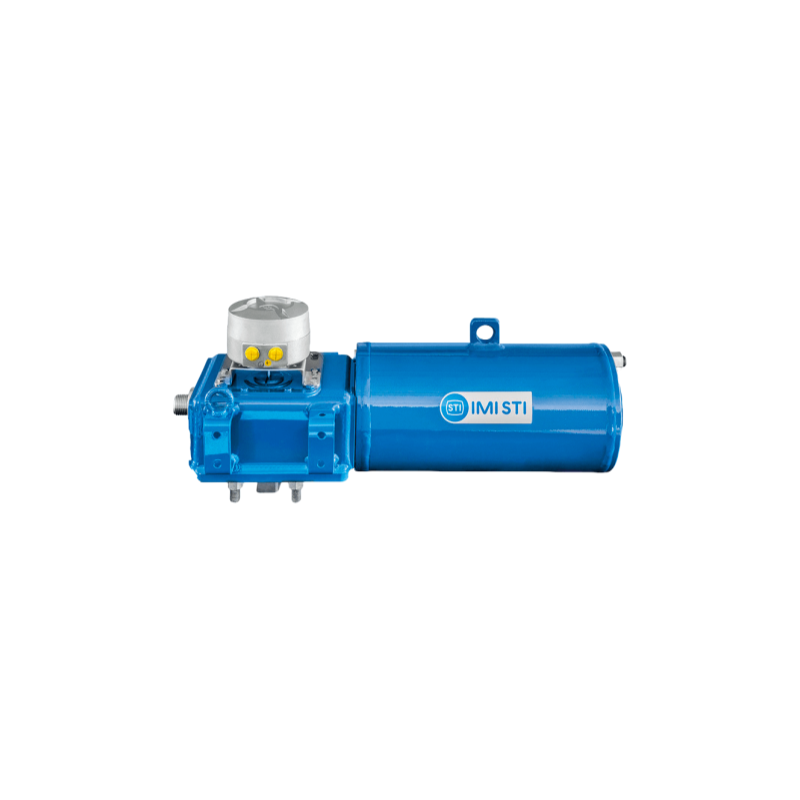

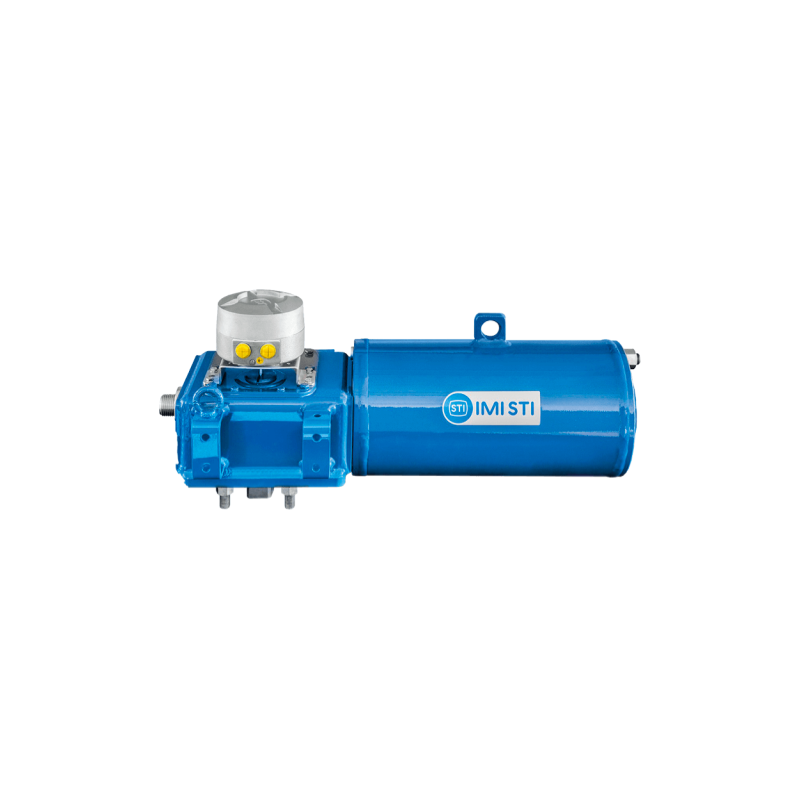

Pictures show
Application area
