Features

1.Maximum thrusts of up to 5.3 kN (1,200 lbf) can be produced, depending on construction.

2.Depending on size, strokes of up to 105 mm (4 1/8 in) are available.

3.Four tapped holes in the actuator base permit either bracket or plate mounting.

4.A wide spring selection is available for nearly any control application.

Specifications

Actuation：Spring-return, Linear

Certifications：PED, CUTR, ATEX

Control Type：On/Off, Throttling, Positioning

Operating Temperature：Standard Temperature

Power Source：Pneumatic

Process Control：On/Off, Throttling, Positioning

Valve Type：Angle Valve, Globe Valve

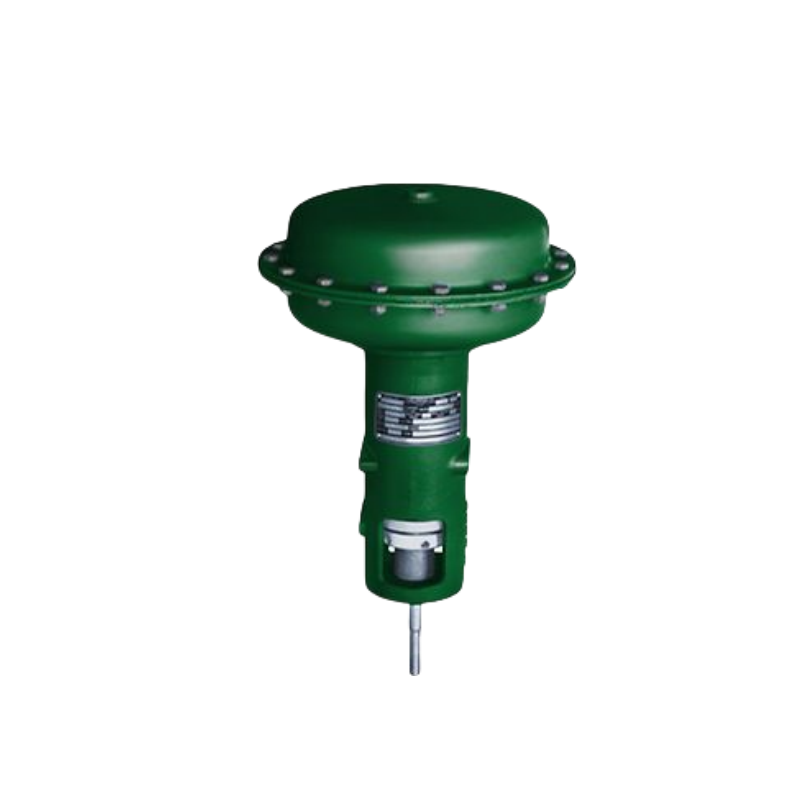

Pictures show
