Features

1.Actuator with or without positioners and snubbers is available in an assortment of sizes, stroking speeds, thrusts, and travels to handle most control requirements.

2.Yokeless construction permits a low-profile assembly by allowing close coupling to the control device; either through a bracket or by direct-mounting on a bonnet flange.

3.The cylinder can operate with supply pressures as low as 2.4 bar (35 psig) or as high as 10.3 bar (150 psig).

4.Actuators have maximum rated travels of up to 206 mm (8.125 in).

Specifications

Actuation：Double-acting, Quarter-turn, Rotary

Certifications：PED, CUTR, ATEX

Control Type：On/Off

Power Source：Pneumatic

Valve Type：Ball Valve, Butterfly Valve, Louver, Damper, Rheostats

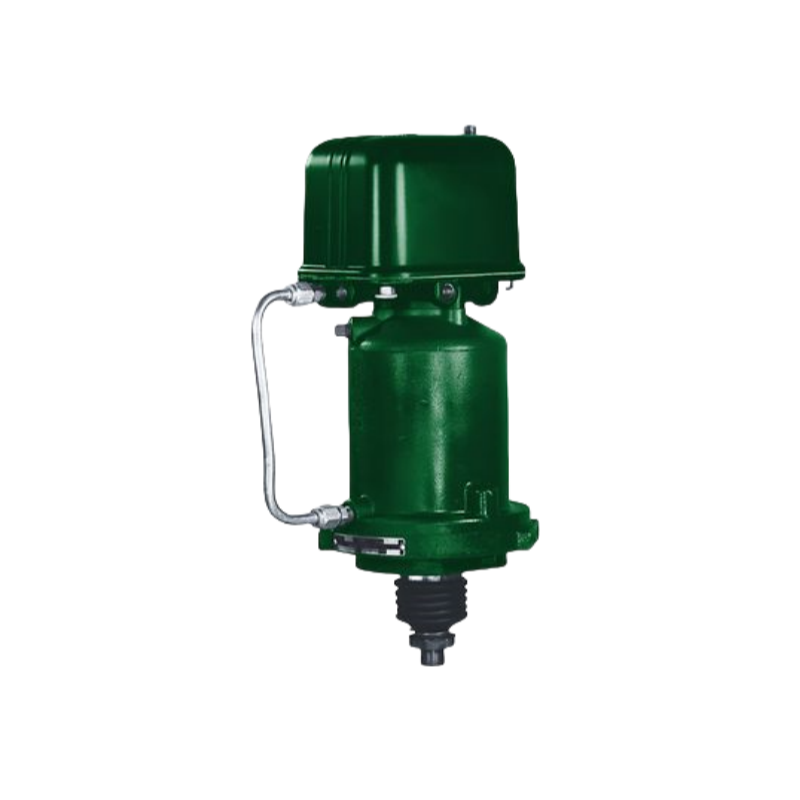

Pictures show
