Features

1.Longer life cycles: tested to 1 million cycles on hot water and 50 psi steam; 500,000 cycles on 125 psi steam

2.Lower power operation: smaller operator reduces energy consumption on 5 psi differential pressure applications

3.DC constructions have quiet designs that work with 0 psi differential pressure on hot water and 50 psi steam

4.Inventory reduction: one valve can be used for both steam and hot water applications

5.Quick delivery with many constructions available on ASCO Express

Specifications

Valve Actuation: Solenoid

Body Material: Brass

Media: Hot Water, Steam

Pipe / Port Size: 1/2 "; 3/8 "; 3/4 "; 1 "; 1 1/4 "; 1 1/2 "; 2 "; 2 1/2 "

Port Type: NPTF

Function: 2 way - 2/2 Normally Closed, 2 way - 2/2 Normally Open

Flow: From 2.0 Cv to 6.0 Cv, From 6.0 Cv to 14.0 Cv, Over 14.0 Cv

Voltage: 110 AC, 12 DC, 120 AC, 120 DC, 208 AC, 220 AC, 24 DC, 24 AC, 240 AC, 48 DC, 480 AC - 50, 50/60, 60

The Related Products:

210 Series

EF8210D014 24DC

EF8210G089 24DC

EF8210G089 220AC

EF8210G034 220AC

VCEFCM8210G037 24DC

327 Series

NF8327B212.24/DC

NF8327B011.230/50-60

NFET8327B232 24VDC

NFET8327B202 24VDC

NF8327B011 24VDC

NF8327A608 230V/50HZ

NF8327B112/24V

NF8327B102 24DC

WSNFIS8327B312 24DC

WSNF8327B122 24DC

WSNF8327A608

WSNF8327B312

WSNF8327B112MO

WSNF8327B202

WSNFET8327B102 24VDC

EF8327G041 220AC

551 Series

NF8551B401MO 220AC

NF8551B418 220AC

NF8551B402 220AC

NF8551B418MO 220AC

NF8551B402MO 220AC

NFG551A409MO 24DC

WSNF8551A322MO

WSNF8551A309MO

EF8551A001MS 24V

EF8551A001MS

VCEFCMG551H301MO 24DC

JPIS8551B321MO 24DC

531 Series

EF8531G301MO 24VDC

JPISG531B301 24DC

JPIS8531B301MO 24DC

553 Series

NF8553A417MO DC24V

WSNF8553A421 24DC

WSNF8553A321 24DC

WSNF8553A309MO

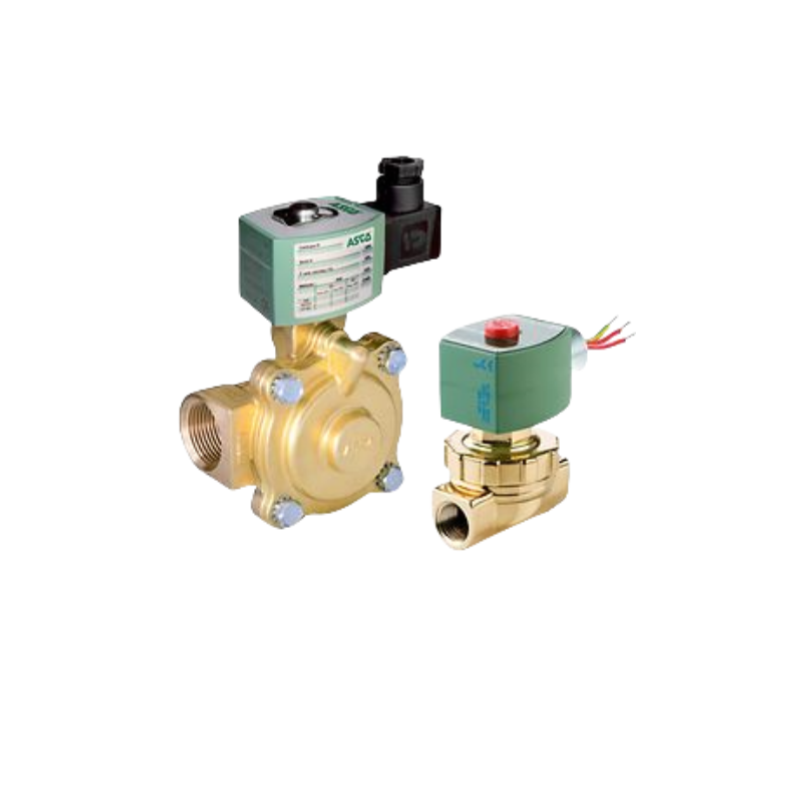

Pictures Show
