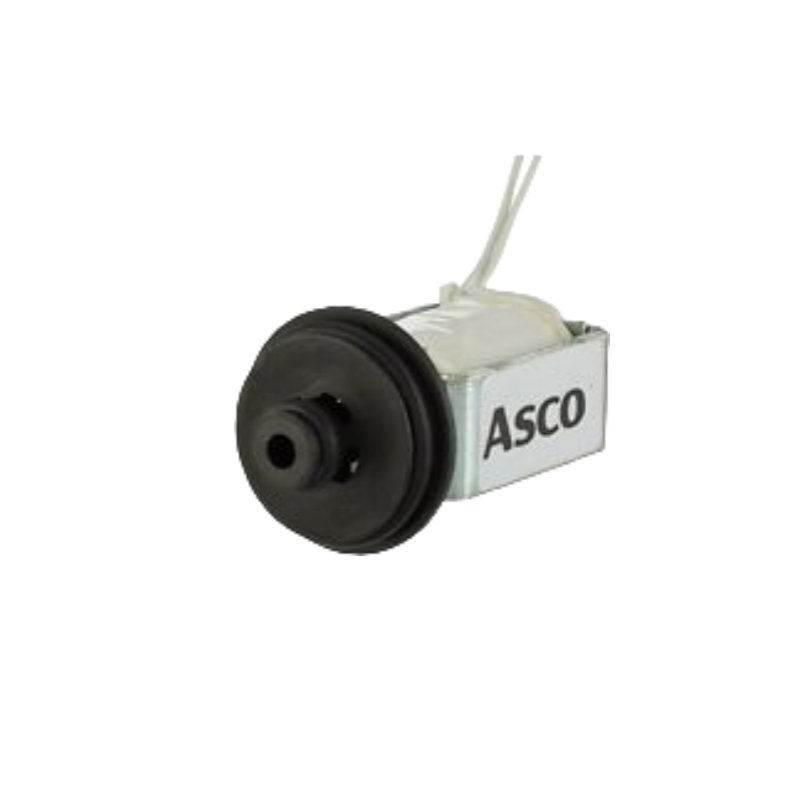

ASCO Series RB Miniature Valves
The ASCO Series RB is a line of miniature solenoid valves designed for use with air and inert gases. Their compact, lightweight architecture and low power consumption make them ideal for portable medical devices. The valves exceptional service lifetime of over 500 million cycles significantly increases OEM instrument reliability. The RB Series typical applications include respiratory therapy instruments, patient monitoring equipment, compression therapy (DVT), and robotic pharmacy dispensing.
Features
1.Highly customizable construction is suitable dry air, lubricated air, vacuum, non-corrosive, non-toxic, and non-flammable dry gases
2.Meets all relevant CE directives, and is RoHS compliant for lead-free environments
3.Response time is less than 0.010 seconds
4.Circuit board mountable
Specifications
Valve Actuation：Solenoid
Body Material：Brass - Nickel Plated; Stainless Steel
Media：Air, Inert Gas; Oxygen
Pipe / Port Size：10-32 "; 1/8 "
Port Type：Push-in; UNF
Function：2 way - 2/2 Normally Closed; 3 way - 3/2 Normally Closed
Flow：Less than .05 Cv; From .05-.1 Cv
Voltage：12 DC; 24 DC - 50/60
Max Differential / Max Operating Pressure：Vacuum to 150 PSIG
