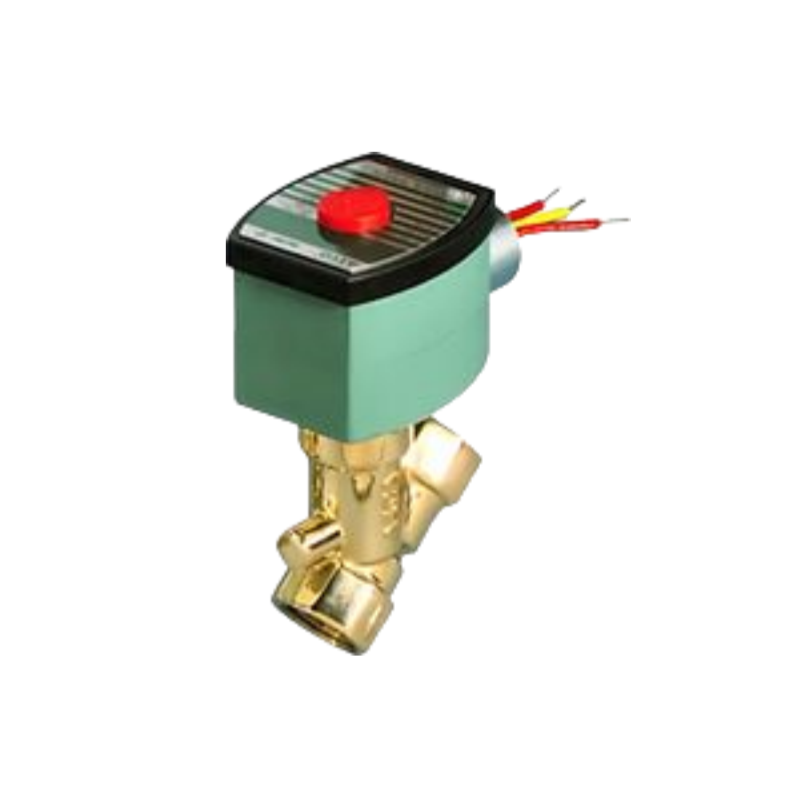

Features

1.Ideal for low pressure general service and vacuum applications

2.Brass constructions available for fuel gas service in commercial and industrial gas burners

3.Gas shutoff model has 2-way normally closed operation

4.Gas vent model has 2-way normally open operation

5.Most constructions mountable in any position for convenient installation

Specifications

Valve Actuation：Solenoid

Body Material：Brass, Stainless Steel

Media：Air, Inert Gas, Natural Gas, Water

Pipe / Port Size：1/2 "; 3/8 "; 3/4 "

Port Type：NPTF

Function：2 way - 2/2 Normally Closed, 2 way - 2/2 Normally Open

Flow：From 2.0 Cv to 6.0 Cv, From 6.0 Cv to 14.0 Cv

Voltage：24 AC, 110 AC, 120 AC, 220 AC, 230 AC, 480 AC, 6 DC, 12 DC, 24 DC, 120 DC, 240 DC | 50/60

Max Differential / Max Operating Pressure：Vacuum to 150 PSIG
