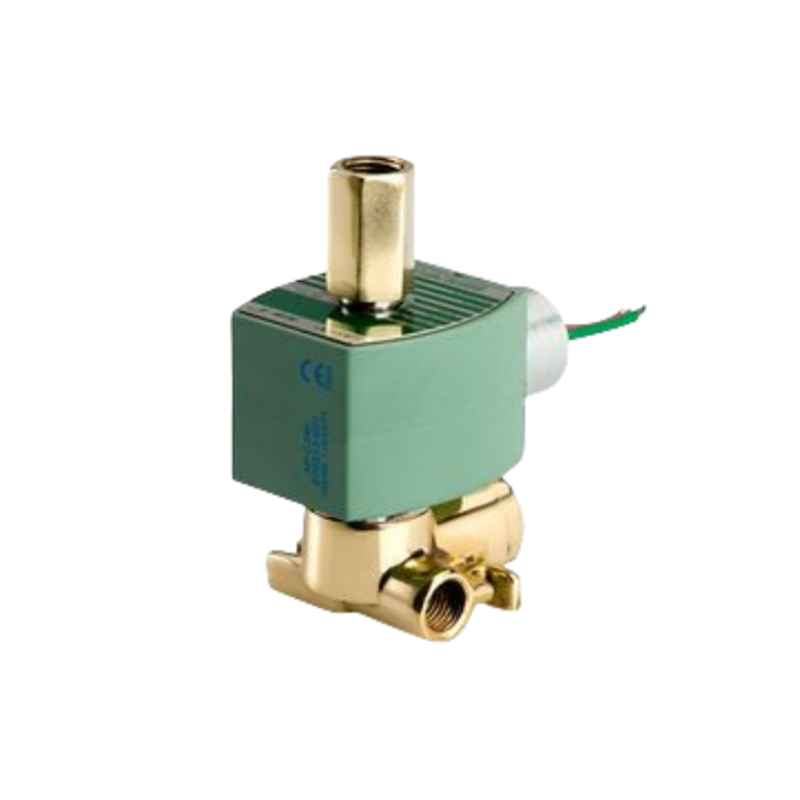

Features

1.RedHat Next Generation version uses electronics technology to manage power, providing less energy consumption and enhanced pressure and flow ratings

2.Low-power model has one-piece solenoid with highly efficient solenoid cartridge and special low-wattage coil. Designed for automotive automation applications with PLC compatibility

3.Resilient seated poppets for tight shutoff

4.Mountable in any position for easy installation

Specifications

Valve Actuation：Solenoid - Air Pilot

Body Material：Brass, Stainless Steel

Media：Air, Inert Gas, Light Oil, Water

Pipe / Port Size：1/4 "; 3/8 "

Port Type：NPTF

Function：3 way - 3/2 Normally Closed, 3 way - 3/2 Normally Open

Flow：From 0.1 Cv to 0.5 Cv, From 0.5 Cv to 1.0 Cv, From 1.0 Cv to 2.0 Cv, From .2 to .43 Kv, From .43 to .86 Kv, From .86 to 1.73 Kv

Voltage：24 AC, 110 AC, 480 AC, 6 DC, 12 DC, 24 DC, 48 DC, 120 DC, 240 DC, 12 to 24 DC Voltage Ranging, 24 to 120 AC/DC Voltage Ranging, 100 to 240 AC/DC Voltage Ranging, 125 DC Battery Charging | 50, 50/60, 60

Max Differential / Max Operating Pressure：Vacuum to 150 PSIG, 150-500 PSIG
