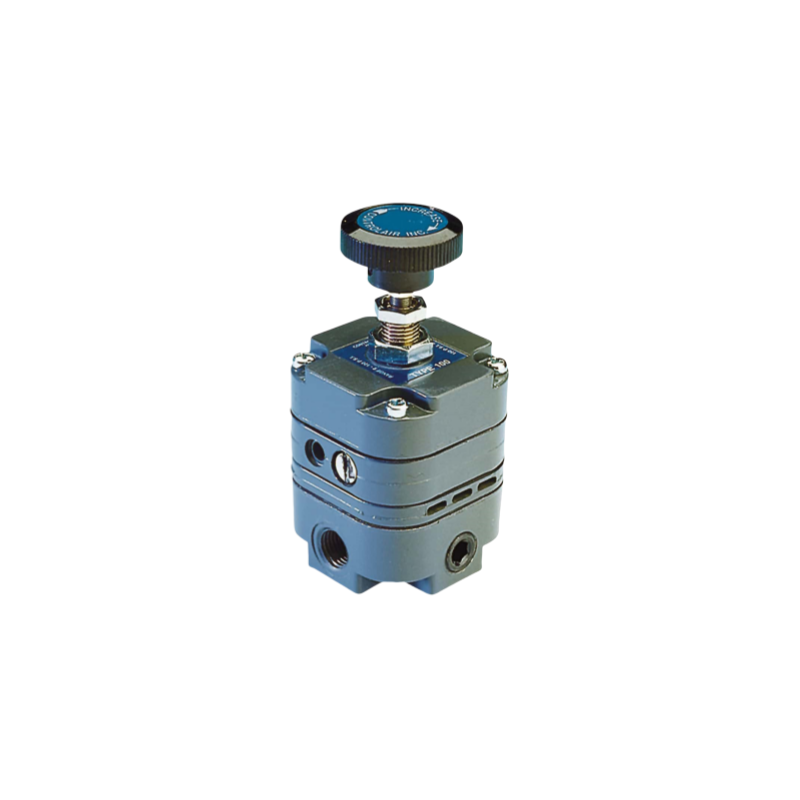

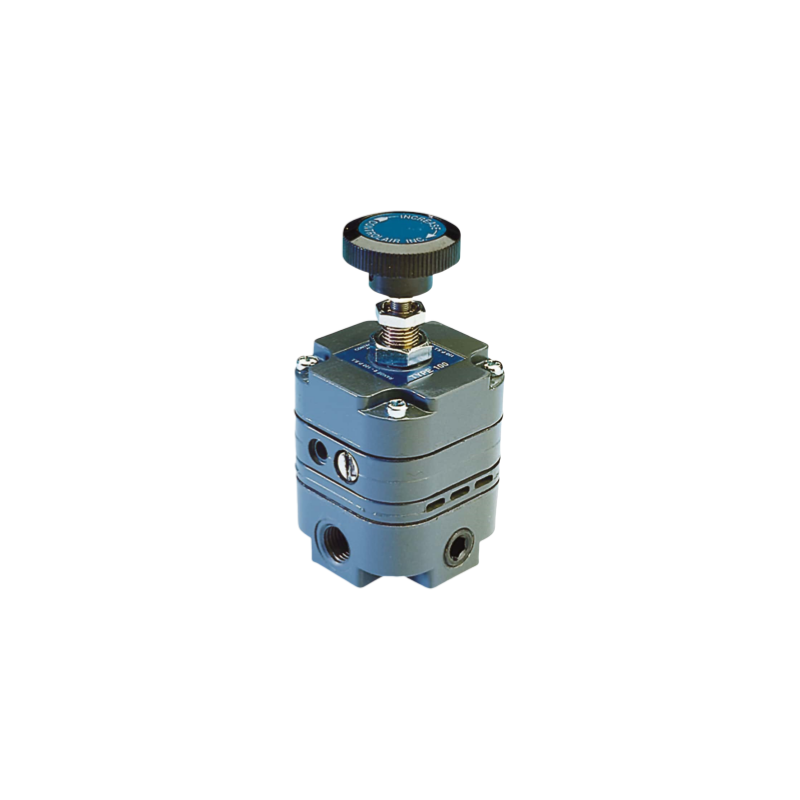

Type 100 Precision Air Pressure Regulator

The Type 100 is a high precision, multi-stage pressure regulator. This pressure controller provides the highest level of regulation accuracy and repeatability available. The Type 100 is ideal for applications that call for the utmost of control and stability under variable operating conditions. A stainless steel measuring capsule is used as a sensing element to activate the high gain servo balanced control mechanism in which the main valve is controlled by a pilot valve. This allows for greater accuracy and eliminates many of the problems associated with conventional regulators using range springs and diaphragms.


Details

Specifications

Port Size

1/4" BSP, 1/4" NPT, 1/8" BSP, 1/8" NPT, 3/8" BSP, 3/8" NPT

Output Range

0.5-25 psig (0.03-1.7 bar), 2-120 psig (0.14-8 bar), 2-40 psig (0.14-2.7 bar), 2-60 psig (0.14-4 bar)

Flow Capacity (100 psig supply - 20 psig outlet)

14 scfm (420 NL/min)

Exhaust Capacity

Up to 15 scfm (425 NL/min)

Sensitivity

1/8 in. (3.2 mm)

Max. Supply Pressure

150 psig (10 bar)

Supply Pressure Sensitivity

less than 0.005 psig (0.003 bar) for a 25 psi (1.7 bar) change

Air Consumption

6 scfh (3 NL/min)

Ambient Temperature Limits

-20° to 160°F (-29° to 71°C)

Gauge Ports (2)

1/4" NPT, 1/4" BSP

Weight

1.4 lb. (635 g)

Mounting Options

Pipe, Panel, Bracket

Body Materials

Diecast zinc alloy
