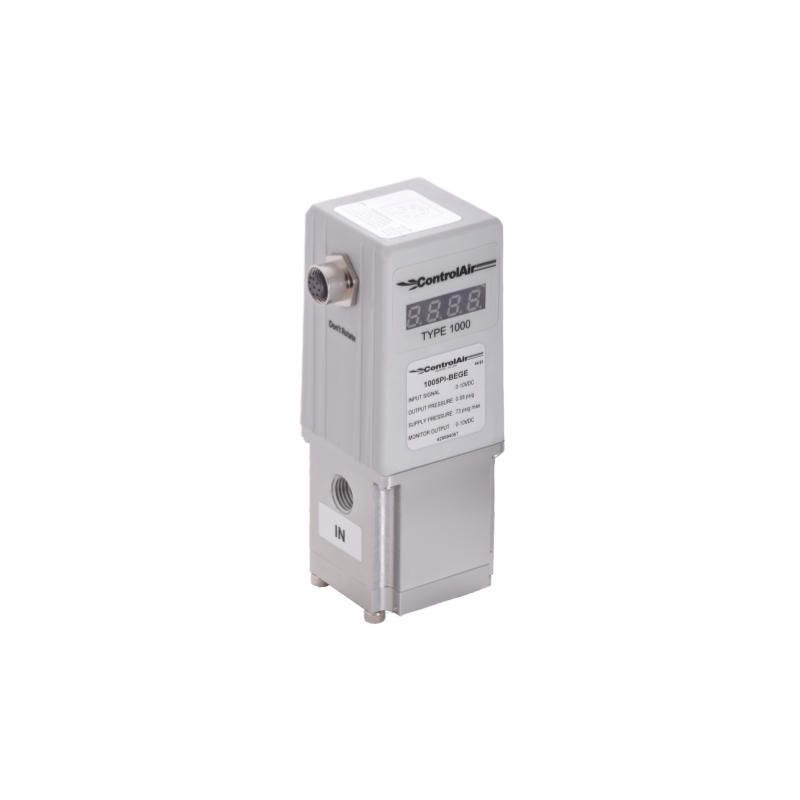

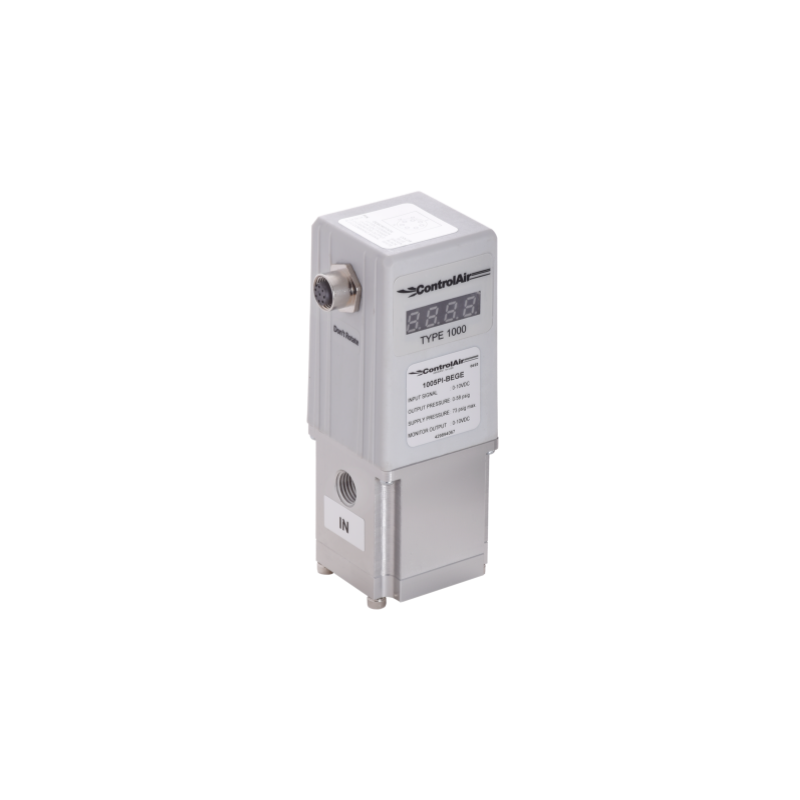

Type 1005P Electro-Pneumatic High Flow Pressure Regulator

The Type 1000P, 1005P, & 1010P Electro-Pneumatic Pressure Regulators are complete closed loop servo systems consisting of two solenoid valves, an internal pressure sensor, and electronic controls. Based on analog signal, the pressure is controlled by two solenoid valves to maintain precise pressure: one valve functions as inlet control, the other as exhaust. The pressure output is measured by an internal feedback pressure sensor that provides a feedback signal to the electronic controls. The electro-pneumatic pressure regulator is suitable for industries that require precise pressure changes at any time and monitor pressure values. Available with five selections of input signal: 0-5VDC, 0-10VDC, 1-5VDC, 4-20mA, or RS485 Modbus. Monitor signal can be chosen from 0-5V, 0-10V, 1-5V, 4-20mA or RS485 Modbus.
