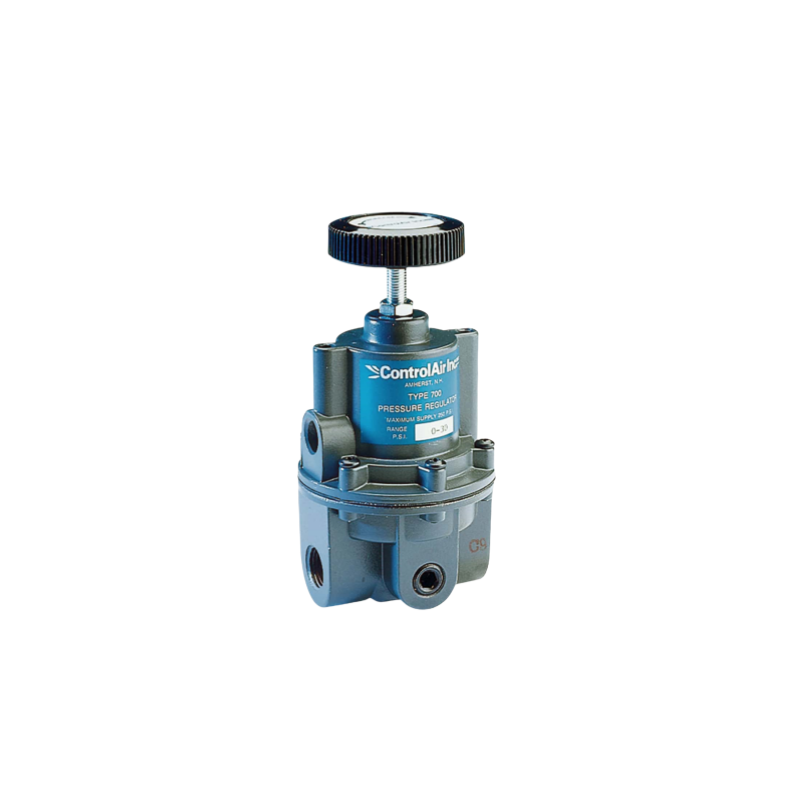

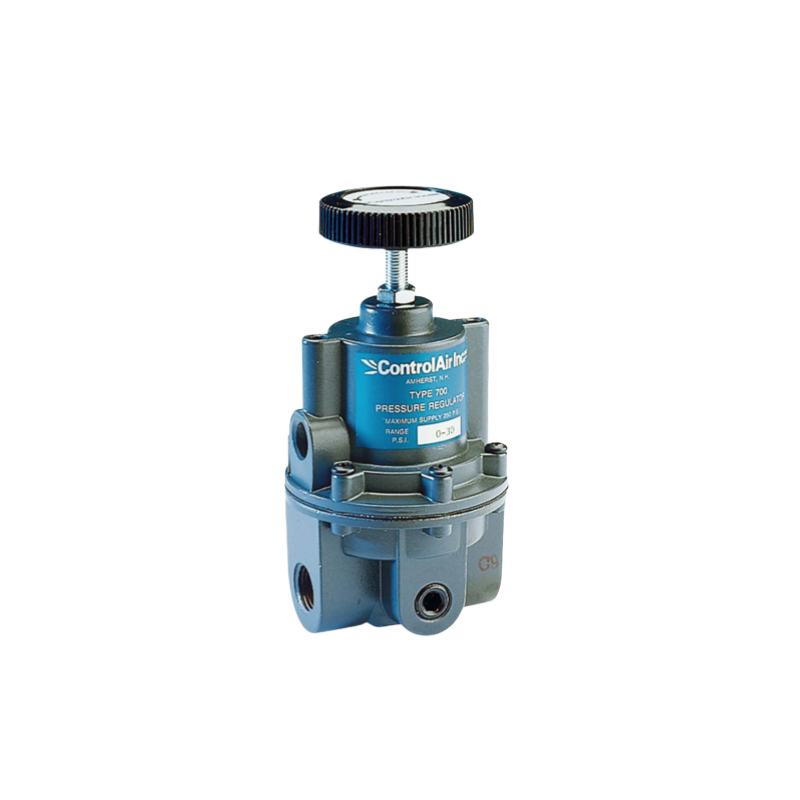

Type 700 High Flow Pressure Regulator
The Type 700 is designed for applications that require high flow capacity and accurate process control. A poppet valve which is balanced by utilizing a rolling diaphragm insures a constant output pressure even during wide supply pressure variations. Stability of regulated pressure is maintained under varying flow conditions through the use of an aspirator tube which adjusts the air supply in accordance with the flow velocity
Specifications
Port Size | 1/2" BSP, 1/2" NPT, 1/4" BSP, 1/4" NPT, 3/8" BSP, 3/8" NPT |
Output Range | 0-100 psig (0-7 bar), 0-15 psig (0-1.0 bar), 0-150 psig (0-10.3 bar), 0-2 psig (0-0.15 bar), 0-30 psig (0-2.1 bar), 0-60 psig (0-4 bar) |
Flow Capacity | 80 scfm (2,264 Nl/min) |
Exhaust Capacity | 4 scfm (120 NL/min) |
Sensitivity | 1/8" in. (3.2 mm) |
Max. Supply Pressure | 250 psig (17 bar) |
Supply Pressure Sensitivity | Less than 0.1 psig for a 100 psig change (0.007 bar for a 6.7 bar change) |
Air Consumption | Less than 12.0 scfh (340 Nl/hr) |
Ambient Temperature Limits | -40° to +160°F '(-40° to 71°C) |
Weight | 1.625 lbs (0.74 kg) |
Mounting | Pipe, Panel, Bracket |
Body Material | Diecast Aluminum Alloy |
Other Material | Stainless steel, Brass, Plated Steel Acetal, Buna-N, Polyester, Phenolic Plastic |
