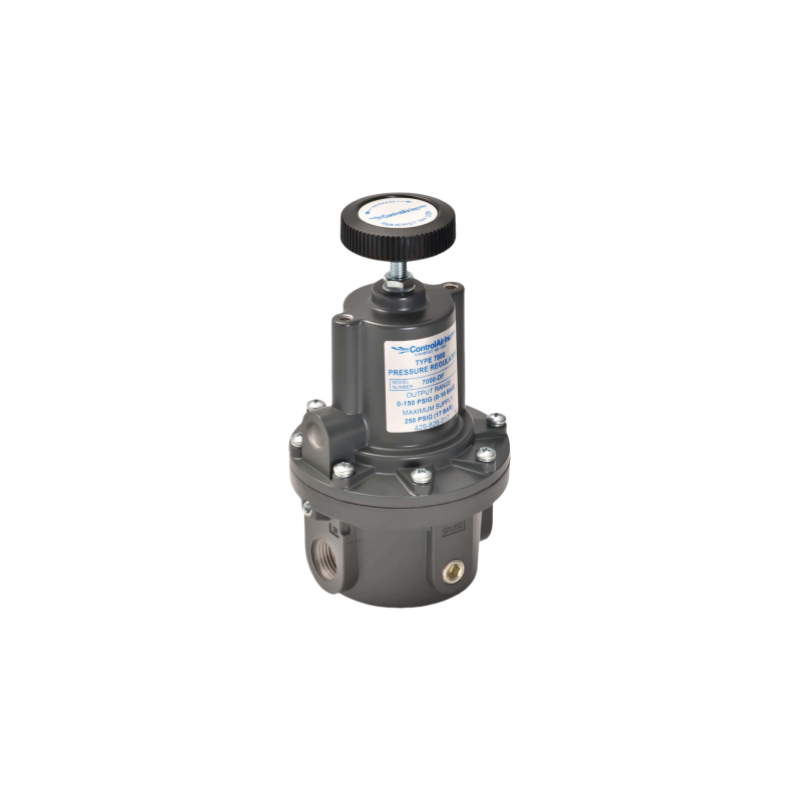

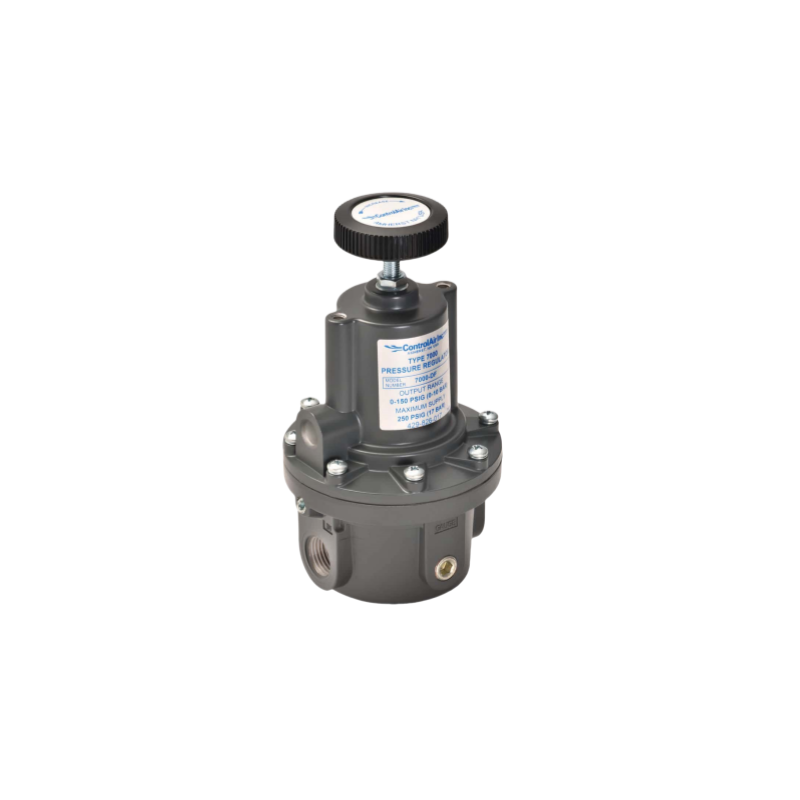

Type 7000 Precision Air Pressure Regulator
The Type 7000 regulator provides high flow capacity while maintaining high accuracy, low droop and precise adjustment during variable high flow conditions. Multiple port size options (up to 3/4″) and rugged construction make the Type 7000 regulator suitable for many applications.
Specifications
Port Size | 1/2" NPT, 1/4" NPT, 3/4" NPT |
Output Range | 0-10 psig (0-0.7 bar), 0-100 psig (0-6.89 bar), 0-15 psig (0-1.0 bar), 0-150 psig (0-10 bar), 0-2 psig (0-0.15 bar), 0-200 psig (0-13.8 bar), 0-30 psig (0-2 bar), 0-60 psig (0-4 bar) |
Flow Capacity | 250 scfm (7,079 NL/min) |
Exhaust Capacity | 30 scfm (849 NL/min) |
Sensitivity | 1/2" in. (12.7 mm) |
Max. Supply Pressure | 250 psig (17 bar) |
Supply Pressure Sensitivity | Less than 0.3 psig for a 100 psig change (0.021 bar for a 6.7 bar change) |
Air Consumption | From 1.0 to 12.5 scfh (30 to 375 Nl/hr), depending on output pressure range |
Ambient Temperature Limits | -40° to +200°F '(-40° to 93°C) |
Weight | 2.5 lbs (1.13 kg) |
Mounting | Pipe, Panel, Bracket |
Body Material | Diecast Aluminum Alloy |
Other Material | Stainless steel, Brass, Plated Steel, Aluminum, Nitrile, Phenolic plastic |
