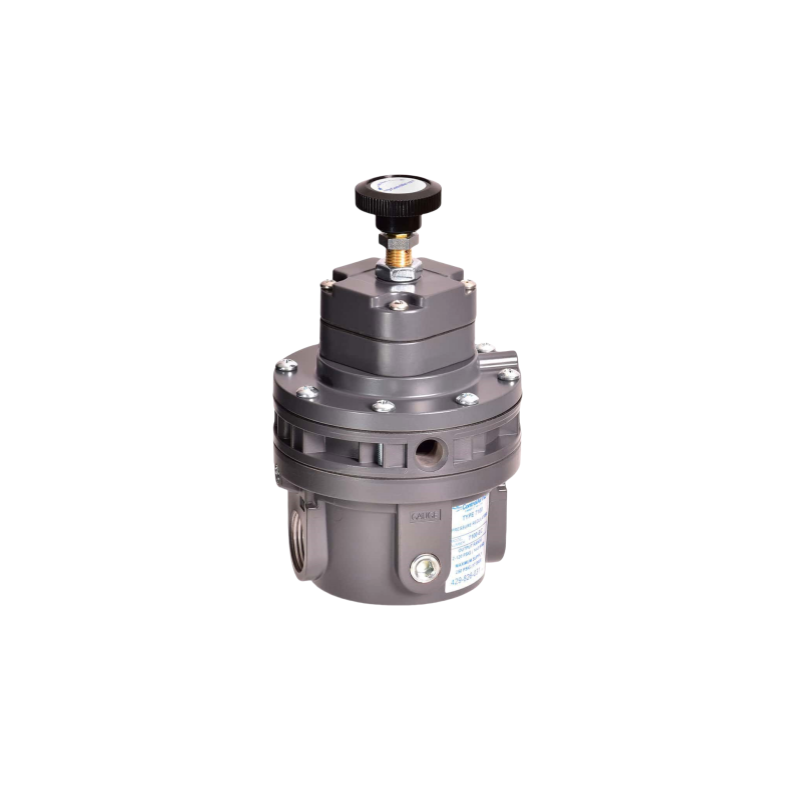

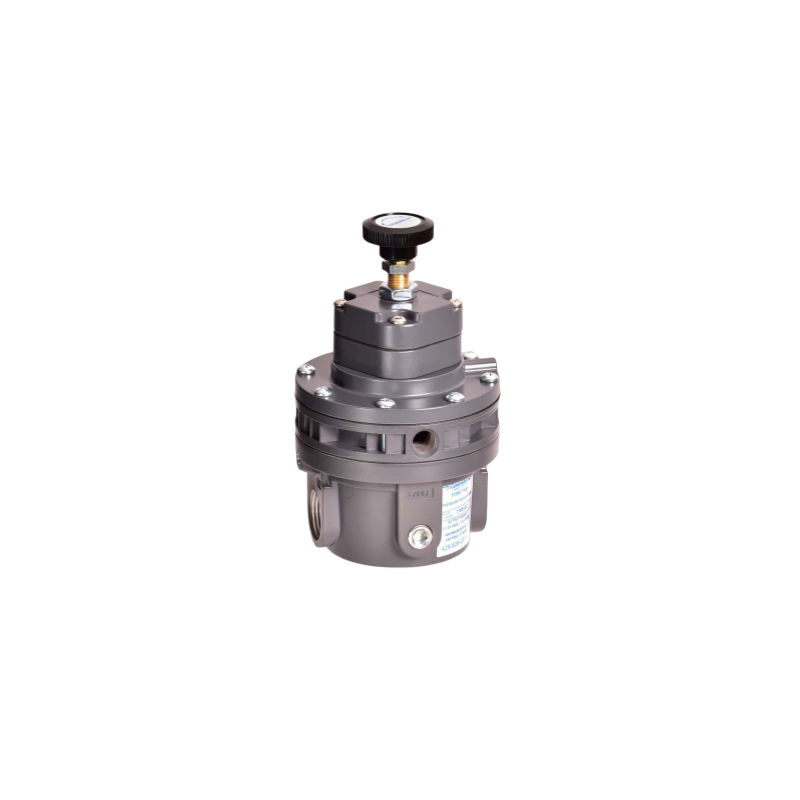

Type 7100 Precision Air Pressure Regulator
This regulator is a high precision, multi-stage pressure regulator offering low droop, fine adjustment and stability under variable operating conditions. The Type 7100 utilizes an isolated control chamber to minimize output variation and vibration/honking during flow conditions.
Features
1. 1/4”, 1/2″, or 3/4″ NPT porting
2. High Flow Forward – allows flows up to 250 scfm.
3. High Exhaust Capacity – allows relief flow up to 80 scfm
4. Balanced Supply Valve – virtually eliminates changes to supply pressure variation
5. Sensitive – control sensitivity to within 1/4″ water column pressure
6. Stable Output – Isolated control chamber prevents output variation under varying conditions of flow, supply pressure, and temperature.
7. Two 1/4″ NPT gauge ports
