Specifications

Material： Aluminium alloy

Enclosure：Weatherproof enclosure IP67

Certificates & approvals：RINA type approval

Torque：Standard: 40 Nm (recommended usage: 30 Nm)

              High speed: 20 Nm

Power：85-265 V ac 1ph, 50/60 Hz, ±10%

             12 V dc

             24 V dc

Duty cycle：S2(on-off): 30 mins, (room temp., average load of 50% of max. torque)

Travel angle：0-90°

Operating time (90°)：Standard: 11 s

                                     High speed: 7 s

Ambient temperature：-20 to +70 °C

Cable entries：Standard: PG 11

                        Option: M20

The related  Products:

Recommended Series Number

APL-210N

APL-211N

APL-212N

General Type APL-2

APL-210N

APL-211N

APL-212N

APL-213N

APL-214N

APL-215N

APL-216N

General Type APL-3

APL-310N

APL-311N

APL-312N

APL-313N

APL-314N

APL-315N

APL-316N

Explosion-proof Type APL-4

APL-410N

APL-411N

APL-412N

APL-413N

APL-414N

APL-415N

APL-416N

Explosion-proof Type APL-5

APL-510N

APL-511N

APL-512N

APL-513N

APL-514N

APL-515N

APL-516N

APL-510S

APL-511S

APL-512S

APL-513S

APL-514S

APL-515S

APL-516S

Explosion-proof Type APL-7

APL-710N

APL-711N

APL-712N

APL-713N

APL-714N

APL-715N

APL-716N

Explosion-proof Type APL-8

APL-810N

APL-811N

APL-812N

APL-813N

APL-814N

APL-815N

APL-816N

General Type APL-9

APL-910N

APL-911N

APL-912N

APL-913N

APL-914N

APL-915N

APL-916N

APL-910S

APL-911S

APL-912S

APL-913S

APL-914S

APL-915S

APL-916S

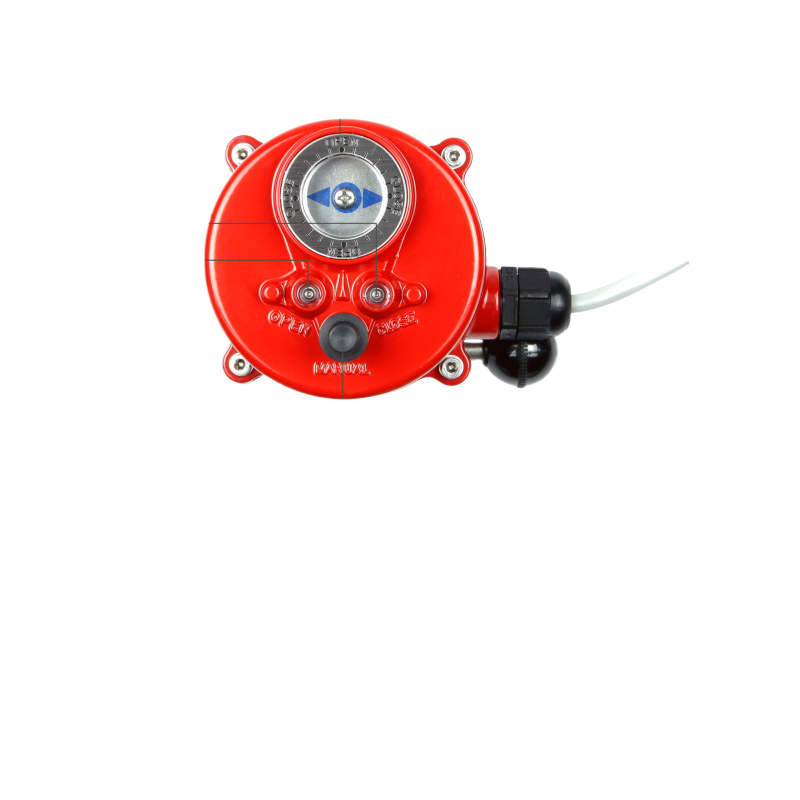

Picture Show
