Features

1.Economical, compact design

2.Piston sensed design is safe and reliable

3.Available in a Stainless Steel or Brass design

4.Optional gauge ports and panel mounting

5.Flow capacity Cv = 0.10

Specifications

Maximum Inlet Pressure：800 psig / 55.2 bar

Controlled Pressure Ranges：40-150, 40-300, 100-700, 100-800 psig

                                                2.8-10.3, 2.8-20.7, 6.9-48.3, 6.9-55.2 bar

Material：Body: 316 Stainless Steel or Brass

Seat: CTFE

O-Ring: Viton®

Back-up Ring: Teflon®®

Remaining PartsStainless model: 316 Stainless Steel

Brass model: Brass and 300 Series Stainless Steel

Operating Temperature：-15°F to 140°F / -26°C to 60°C

The  Related Products:

TESCOM Model Recommendations:

Pressure Reducing Valves:

26-1765-24-247

26-2091A24S272

44-2263-241

44-2263-241 (duplicate entry)

44-2260-942-151

44-4660S94-018

44-2263-242

26-1065-24

26-1766-26

26-1064-24

26-1062-24

26-1063-24

44-1123-24

26-1765-24-071

44-1163-24

54-2062D24

Control Valves:

44-1116-24

26-1065-24-760

44-2263-241

26-1061-24

26-1765-26

26-1764-26

26-1766-26

44-1767-24

SG1P6162

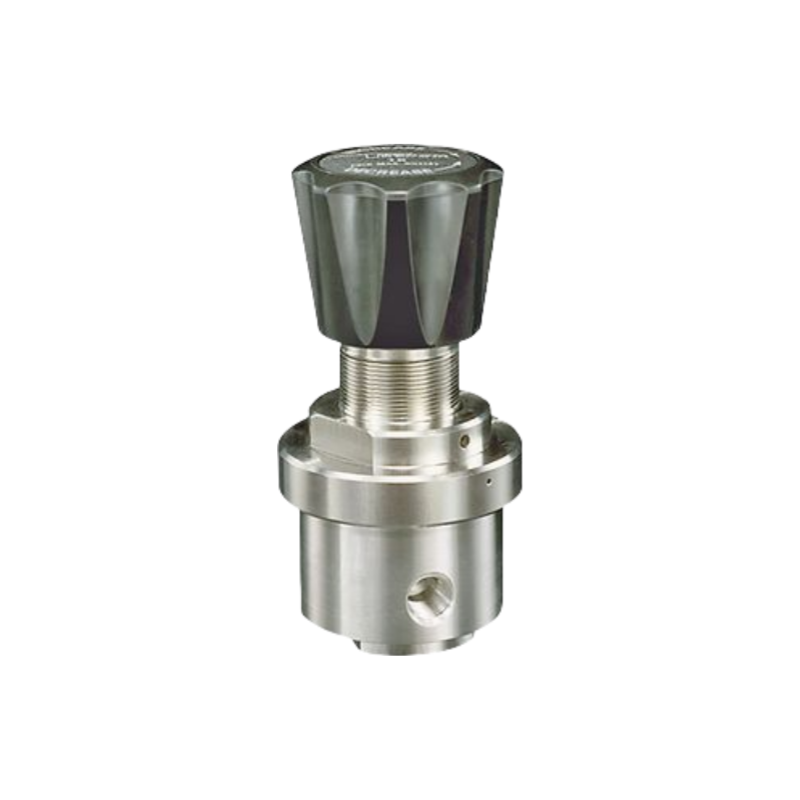

Picture show:
