Features

1.Available in air, dome and spring loaded versions

2.Compatible with TESCOM ER5000 Electronic Controller air loaded only:

3.High flow: Cv = 5.0

4.500 or 5500 psig / 34.5 or 379 bar maximum controlled pressure range

Specifications

Maximum Inlet Pressure: Air Loaded: 500 psig / 34.5 bar

Dome Loaded: 5500 psig / 379 bar

Spring Loaded: 500 psig / 34.5 bar

MaterialBody: 303 and 316 Stainless Steel

                        Seat: Glass Filled Peek, Vespel® SP1

                        O-Rings: Buna-N, Viton®, Ethylene

                        Propylene

                        Back-up Rings: Teflon®

Remaining Parts: 303 Stainless Steel

The  Related Products:

TESCOM Model Recommendations:

Pressure Reducing Valves:

26-1765-24-247

26-2091A24S272

44-2263-241

44-2263-241 (duplicate entry)

44-2260-942-151

44-4660S94-018

44-2263-242

26-1065-24

26-1766-26

26-1064-24

26-1062-24

26-1063-24

44-1123-24

26-1765-24-071

44-1163-24

54-2062D24

Control Valves:

44-1116-24

26-1065-24-760

44-2263-241

26-1061-24

26-1765-26

26-1764-26

26-1766-26

44-1767-24

SG1P6162

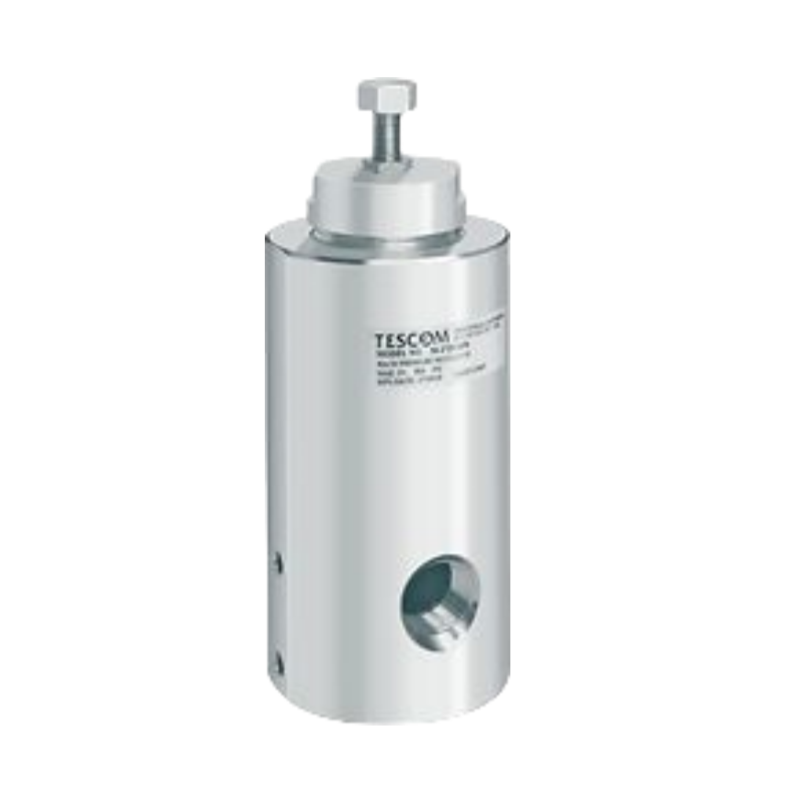

Picture show:
