Features

1.Supports up to eight cylinders per side – 16 total

2.Brass or Stainless Steel regulators and valves

3.Flexibility in shut-off valve type and location for increased customizing

4.Available with either a low pressure or high pressure line regulator

5.Optional remote mount annunciator

Specifications

Maximum Inlet Pressure：3000 psig / 207 bar

Outlet Pressure Ranges：0-30, 0-60, 0-100, 0-150, 0-200, 0-300, 0-500, 0-750, 0-1000 and 0-1500 psig / 0-2.1,0-4.1, 0-6.9, 0-10.3, 0-13.8, 0-20.7, 0-34.5, 0-51.7, 0-68.9 and 0-103 bar

Body Material：Brass, 316 Stainless Steel

Seat Material：Teflon® (Regulators), CTFE (Valves)

Diaphragm：(Outlet Option 0-5): 316 Stainless Steel

The  Related Products:

TESCOM Model Recommendations:

Pressure Reducing Valves:

26-1765-24-247

26-2091A24S272

44-2263-241

44-2263-241 (duplicate entry)

44-2260-942-151

44-4660S94-018

44-2263-242

26-1065-24

26-1766-26

26-1064-24

26-1062-24

26-1063-24

44-1123-24

26-1765-24-071

44-1163-24

54-2062D24

Control Valves:

44-1116-24

26-1065-24-760

44-2263-241

26-1061-24

26-1765-26

26-1764-26

26-1766-26

44-1767-24

SG1P6162

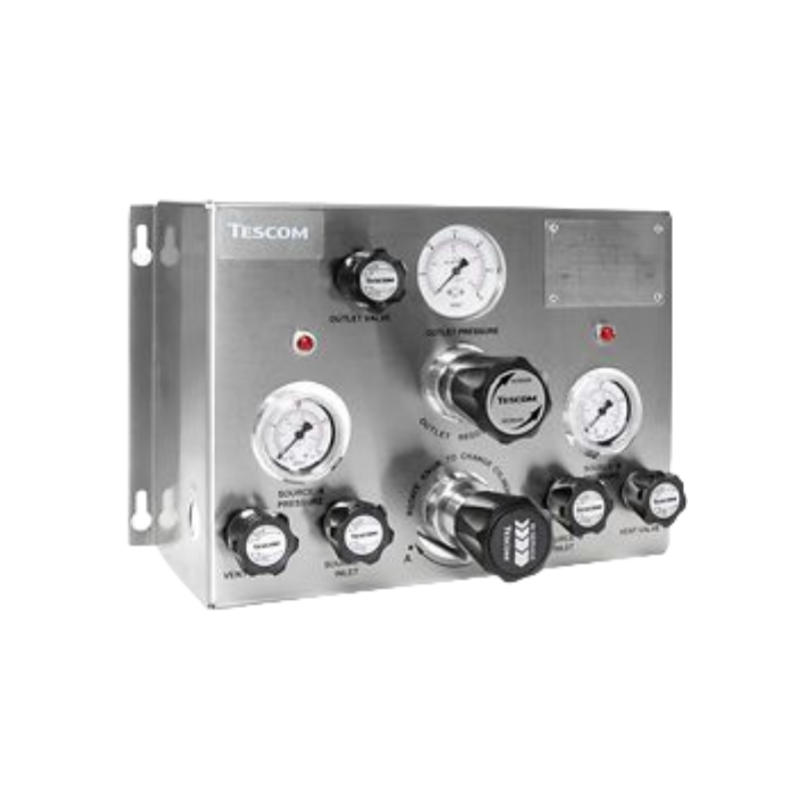

Picture show:
