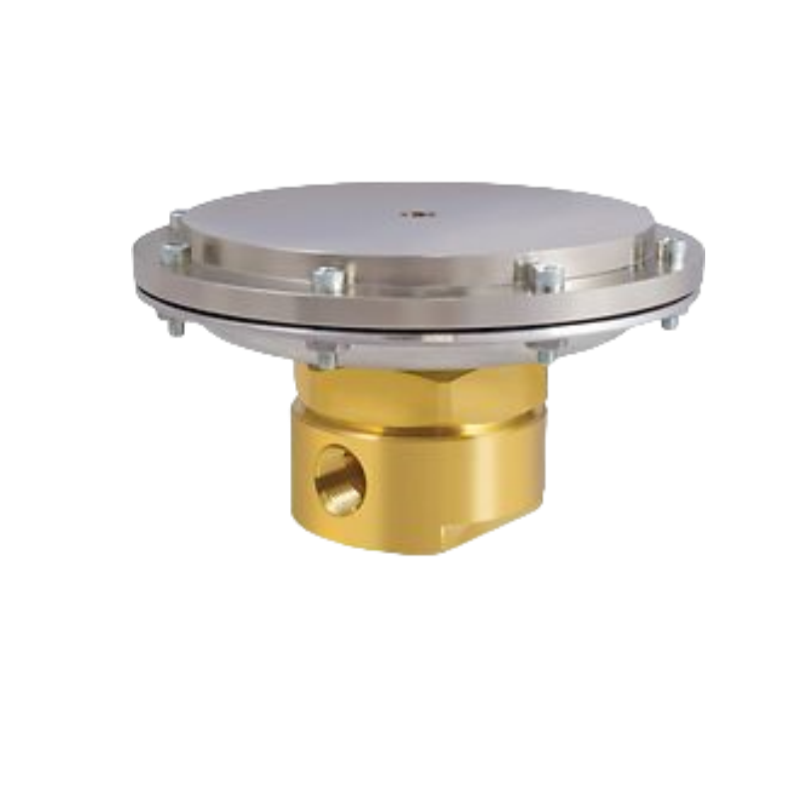

TESCOM DK Series Pressure Control Regulator
DK Series regulator improves control and resolution at medium flow and pressures. The DK can be paired up with the 26-1600 regulator for remote control capability or combined with the ER5000 for remote automated and precise pressure control to ±0.1%. Ideal for use in component testing and development, flow meter calibration, burst and proof testing, superplastic metal forming, vacuum forming, catheter testing or rapture disk testing, sensor and gauge calibration and test. Suitable for coating applications.
Features
1.Segregated and captured venting
2.High flow capacity
Specifications
Pressure Rating：Maximum Inlet Pressure: 1000 psig / 69.0 bar
Maximum Outlet Pressure
Air Load: 0-600 psig / 0-41.4 bar
Dome Load: 0-700 psig / 0-48.3 bar
Body, Bonnet, Back-cap Ring：Brass, 316 Stainless Steel
Diaphragm & O-Rings：Buna-N, Ethylene Propylene, Viton
The Related Products:
TESCOM Model Recommendations:
Pressure Reducing Valves:
26-1765-24-247
26-2091A24S272
44-2263-241
44-2263-241 (duplicate entry)
44-2260-942-151
44-4660S94-018
44-2263-242
26-1065-24
26-1766-26
26-1064-24
26-1062-24
26-1063-24
44-1123-24
26-1765-24-071
44-1163-24
54-2062D24
Control Valves:
44-1116-24
26-1065-24-760
44-2263-241
26-1061-24
26-1765-26
26-1764-26
26-1766-26
44-1767-24
SG1P6162
