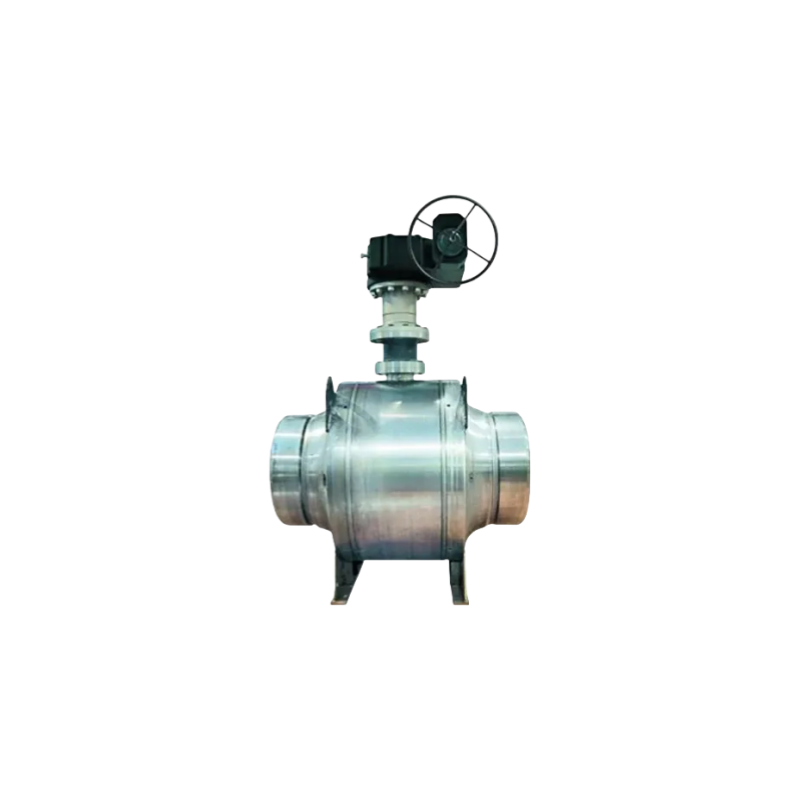

Flowserve VW1 Trunnion Mounted Ball Valves

The Valbart VW1 is a API 6D-compliant, welded-body valve that seals off both seats at the same time and allows bleeding of the entrapped cavity pressure (double block and bleed) with the ball in the closed position.

Details

FEATURES and BENEFITS

1. Reduced fugitive emissions made possible by welded-body construction, which eliminates leak paths

2. Greater process control and safety assured by dual independent floating seat design, guaranteeing sealing power at any pressure level

3. Economical performance due to low torque requirements

4. Simplified seal verification made possible by double block and bleed feature

Other Features

1. Forged components welded body design

2. Soft seated, metal seated

3. Self relieving and double piston effect seats

4. Double block bleed

5. Antistatic design

6. Anti blow out stem
