Features

1.Maintains accurate differential pressure when incorporated into a double seal system

2.Tracks upsets in system pressure and decreases downtime by increasing seal life

3.NACE compatible version available: Modification number -01

4.Available with optional 42MW Welded Diaphragm Instrument Isolator

Specifications

Pressure Rating (psig / bar)：Maximum Inlet Pressure: 500 / 34.5

                                               Maximum Reference Pressure: 400 / 27.6

                                               Maximum Outlet Pressure - Bias & Reference: 500 / 34.5

                                               Bias Pressure Range: 0-100 / 0-6.9

Body Material：316 Stainless Steel

Seat Material：Pressure Reducing: Teflon

                         Backpressure: Vespel

The  Related Products:

TESCOM Model Recommendations:

Pressure Reducing Valves:

26-1765-24-247

26-2091A24S272

44-2263-241

44-2263-241 (duplicate entry)

44-2260-942-151

44-4660S94-018

44-2263-242

26-1065-24

26-1766-26

26-1064-24

26-1062-24

26-1063-24

44-1123-24

26-1765-24-071

44-1163-24

54-2062D24

Control Valves:

44-1116-24

26-1065-24-760

44-2263-241

26-1061-24

26-1765-26

26-1764-26

26-1766-26

44-1767-24

SG1P6162

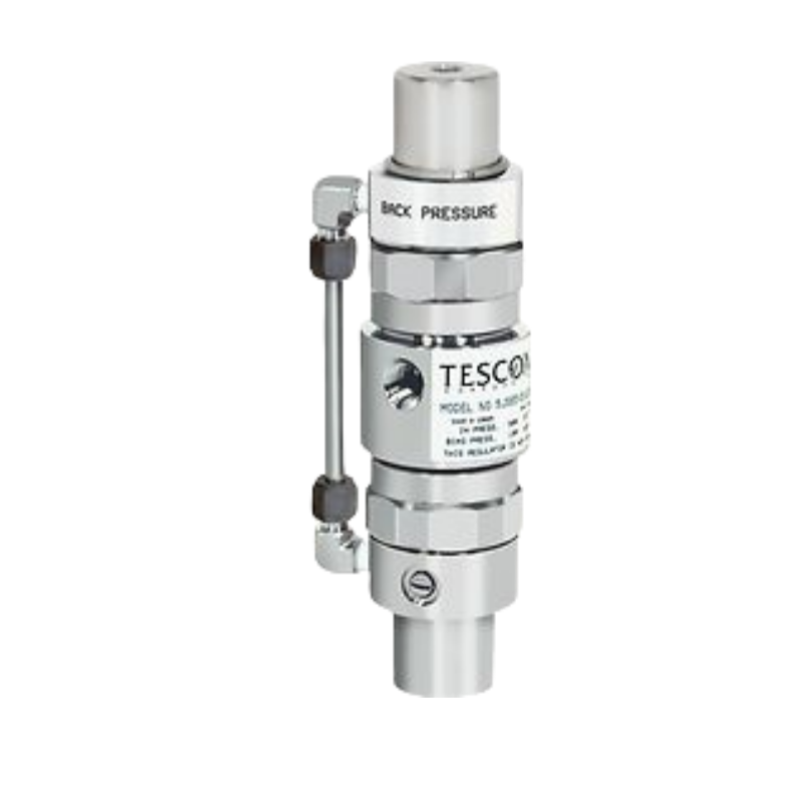

Picture show:
