TESCOM DA Pressure Reducing Regulato

DA Series absolute pressure reducing regulator is designed with an elastomeric diaphragm and provides accuracy to +/- 0.1 psig / 0.007 bar. This regulator may be used to reduce pressure from a supply source up to 4500 psig / 310 bar into a vacuum environment. Ideal for use in instrumentation testing and calibration equipment.

Online consultation

Details

Features

1.Compact in size and highly sensitive

2.Economical

3.Quick response and accurate diaphragm-type regulation

4.Excellent repeatability

5.Non-venting

Specifications

Pressure Rating: Maximum Inlet Pressure: 4500 psig / 310 bar

Outlet Pressure Ranges: 50 mm Hg absolute -

15 psig / 1.0 bar

50 psig / 3.4 bar

100 psig / 6.9 bar

350 psig / 24.1 bar

Body Material: Brass or Nickel-plated Aluminum

Diaphragm Material: Buna-N, Ethylene Propylene, or Viton

The Related Products:

TESCOM Model Recommendations:

Pressure Reducing Valves:

26-1765-24-247

26-2091A24S272

44-2263-241

44-2263-241 (duplicate entry)

44-2260-942-151

44-4660S94-018

44-2263-242

26-1065-24

26-1766-26

26-1064-24

26-1062-24

26-1063-24

44-1123-24

26-1765-24-071

44-1163-24

54-2062D24

Control Valves:

44-1116-24

26-1065-24-760

44-2263-241

26-1061-24

26-1765-26

26-1764-26

26-1766-26

44-1767-24

SG1P6162

Picture show:

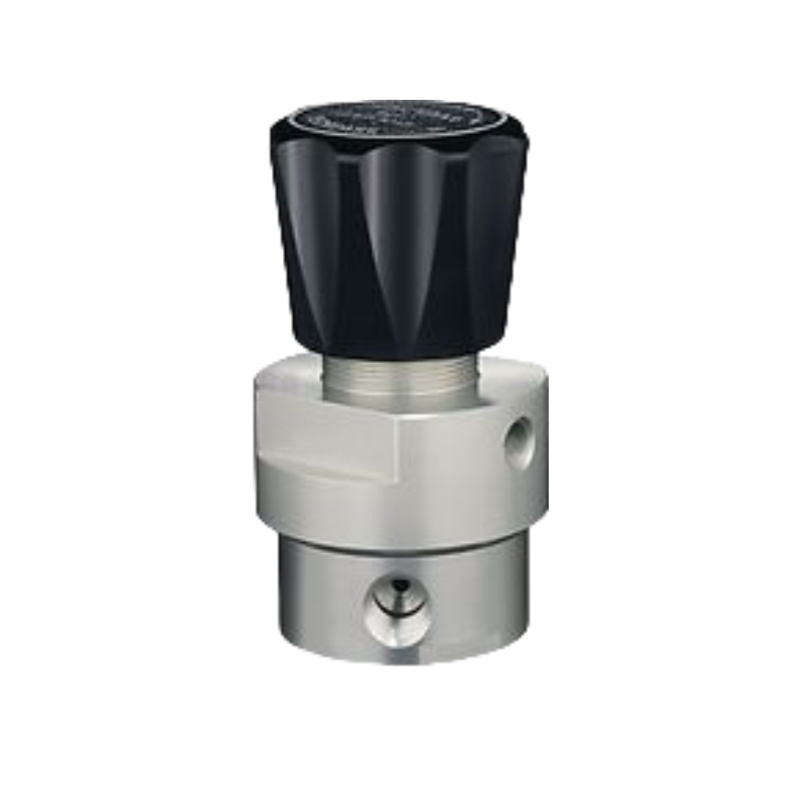

TESCOM DA Pressure Reducing Regulato
