Features

1.Clear indication of open/closed position (90°) of shut-off valve

2.Minimal space for installation required because pressure regulator and shut-off valve are integrated in one body

3.Reduced internal volume, short purging times

4.Modular design featuring a pressure regulator, gauge, 1/4 turn shut-off valve and metering valve

5.Easy installation due to wall mounting plate

Specifications

Pressure Rating：Maximum Inlet Pressure: 580 psig / 40.0 bar

                            Outlet Pressure Ranges: 22, 58, 145 psig / 1.5, 4.0, 10.0 bar

Fluid Media：Non-corrosive / corrosive gases and mixtures up to 6.0 (99.9999 Vol%) purity

Leak Rate：10-8 mbar l/s He

Nominal Flow Rate：100 LPM based on Nitrogen

The  Related Products:

TESCOM Model Recommendations:

Pressure Reducing Valves:

26-1765-24-247

26-2091A24S272

44-2263-241

44-2263-241 (duplicate entry)

44-2260-942-151

44-4660S94-018

44-2263-242

26-1065-24

26-1766-26

26-1064-24

26-1062-24

26-1063-24

44-1123-24

26-1765-24-071

44-1163-24

54-2062D24

Control Valves:

44-1116-24

26-1065-24-760

44-2263-241

26-1061-24

26-1765-26

26-1764-26

26-1766-26

44-1767-24

SG1P6162

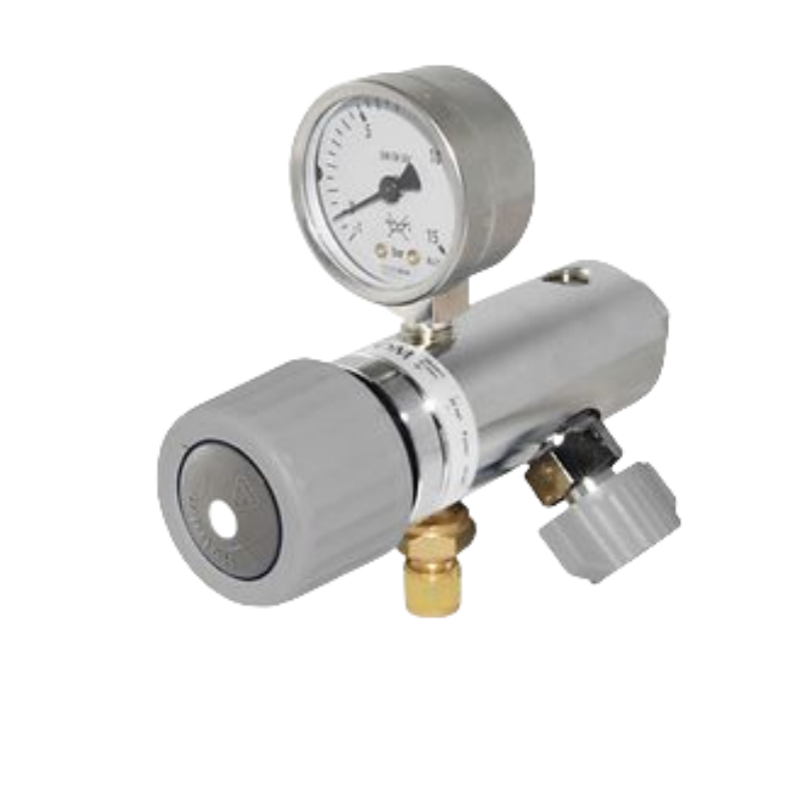

Picture show:
