Features

1.Venting is standard (available with captured venting)

2.Highly sensitive

3.Features a non-rising stem and low operating torque

4.Compact design

5.Filter extends seat life

Specifications

aximum Inlet Pressure：Stainless: 6000 psig / 414 bar

                                       Aluminum, Brass: 5000 psig / 345 bar

Outlet Pressure Ranges：0-50, 0-150, 0-250, 0-500 psig / 0-3.4, 0-10.3, 0-17.2, 0-34.5 bar

Material：Body and Bonnet: 316 Stainless Steel, Aluminum (2024-T351), Brass

                 40 Micron Filter: 300 Series Stainless Steel

                 O-Ring and Diaphragm: Buna-N

Valve Seat：Main: CTFE

                    Vent: 15% graphite-filled Teflon

The  Related Products:

TESCOM Model Recommendations:

Pressure Reducing Valves:

26-1765-24-247

26-2091A24S272

44-2263-241

44-2263-241 (duplicate entry)

44-2260-942-151

44-4660S94-018

44-2263-242

26-1065-24

26-1766-26

26-1064-24

26-1062-24

26-1063-24

44-1123-24

26-1765-24-071

44-1163-24

54-2062D24

Control Valves:

44-1116-24

26-1065-24-760

44-2263-241

26-1061-24

26-1765-26

26-1764-26

26-1766-26

44-1767-24

SG1P6162

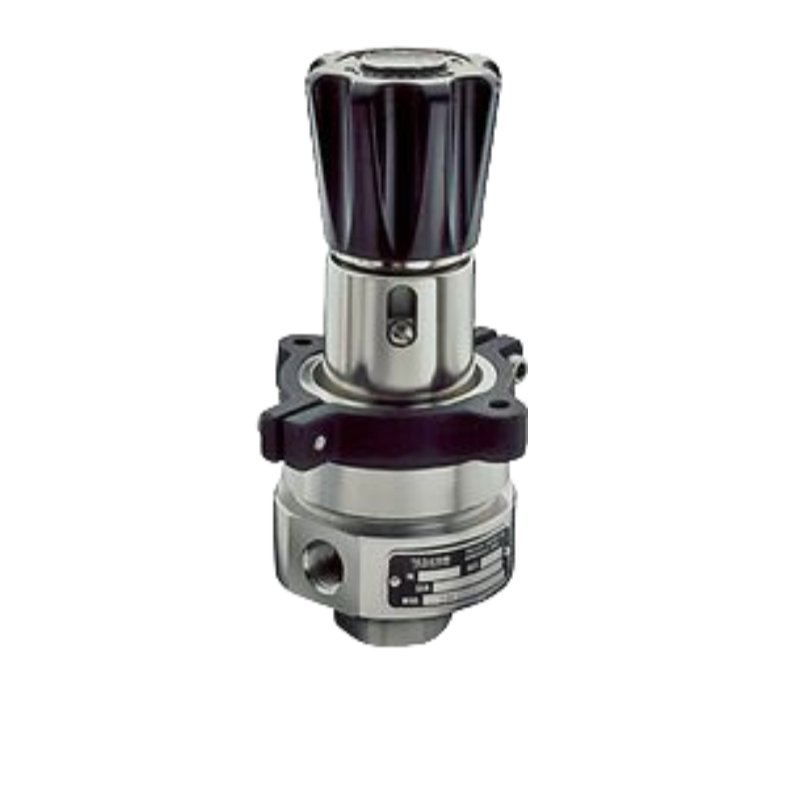

Picture show:
