Features

1.Accurate and consistent setpoint control reduces the risk of flow assurance issues from over and under injection

2.High-quality piston-sensed regulators for longevity in offshore applications reduce maintenance costs and unplanned downtime

3.Alternative options for full automation of injection rate control with the addition of the ER5000

Specifications

Pressure Rating：Maximum Inlet Pressure: 15,000 psig / 1034 bar

                            Maximum Outlet Pressure: 200-15,000 psig / 13.8-1034 bar

                            (non-adjustable spring bias pressure: 175-200 psig / 12-13.8 bar)

Material：Body:  17-4 Stainless Steel

                            Seat, Main Valve: Vespel® SP1

                            O-Ring: Buna-N

                            Back-up Ring: CTFE

                            Remaining Parts: 300 Series Stainless Steel, 17-4 Stainless Steel and Nitronic 60

Operating Temperature：-15°F to 165°F / -26°C to 74°C

                                         2 For extended temperatures from -40°F to 400°F / -40°C to 204°C, consult TESCOM.

The  Related Products:

TESCOM Model Recommendations:

Pressure Reducing Valves:

26-1765-24-247

26-2091A24S272

44-2263-241

44-2263-241 (duplicate entry)

44-2260-942-151

44-4660S94-018

44-2263-242

26-1065-24

26-1766-26

26-1064-24

26-1062-24

26-1063-24

44-1123-24

26-1765-24-071

44-1163-24

54-2062D24

Control Valves:

44-1116-24

26-1065-24-760

44-2263-241

26-1061-24

26-1765-26

26-1764-26

26-1766-26

44-1767-24

SG1P6162

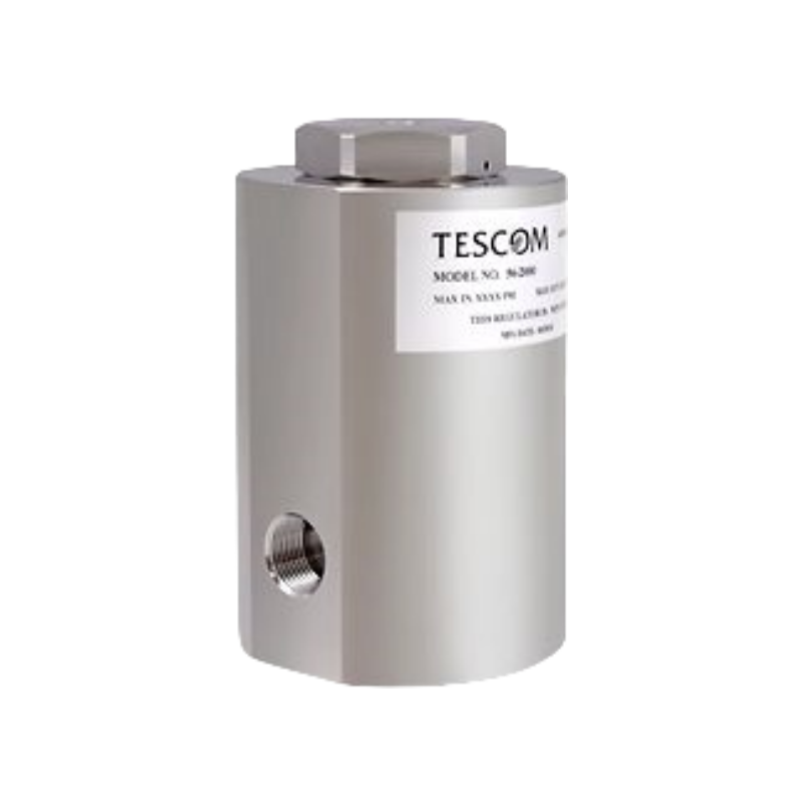

Picture show:
