Features

1.Diaphragm sensed and highly sensitive

2.Modular construction for easy service

3.External sensing available for improved accuracy

4.Balanced main valve increases seat life

5.Mounts in any position

6.Low droop and lockup

Specifications

Pressure Rating：Maximum Inlet Pressure: 3600 and 6000 psig / 248 and 414 bar

                            Outlet Pressure: To maximum inlet

Material：Body: 303, 316 Stainless Steel

                 Seat: CTFE or Vespel®

                 Diaphragm, O-Rings: Buna-N or Viton®

                 Back-up Rings: Teflon®

                 Remaining Parts: 300 Series Stainless Steel

Port Size & Type：Cv = 3.3: 3/4 or 1, SAE, NPTF or MS33649

                              Cv = 6.0: 3/4, 1 or 1-1/4, SAE or MS33649

                              Cv = 12.0: 1 or 1-1/4, SAE, NPTF or MS33649

                              Cv = 20.0: 2 ANSI/ASME Flanges or Grayloc

The  Related Products:

TESCOM Model Recommendations:

Pressure Reducing Valves:

26-1765-24-247

26-2091A24S272

44-2263-241

44-2263-241 (duplicate entry)

44-2260-942-151

44-4660S94-018

44-2263-242

26-1065-24

26-1766-26

26-1064-24

26-1062-24

26-1063-24

44-1123-24

26-1765-24-071

44-1163-24

54-2062D24

Control Valves:

44-1116-24

26-1065-24-760

44-2263-241

26-1061-24

26-1765-26

26-1764-26

26-1766-26

44-1767-24

SG1P6162

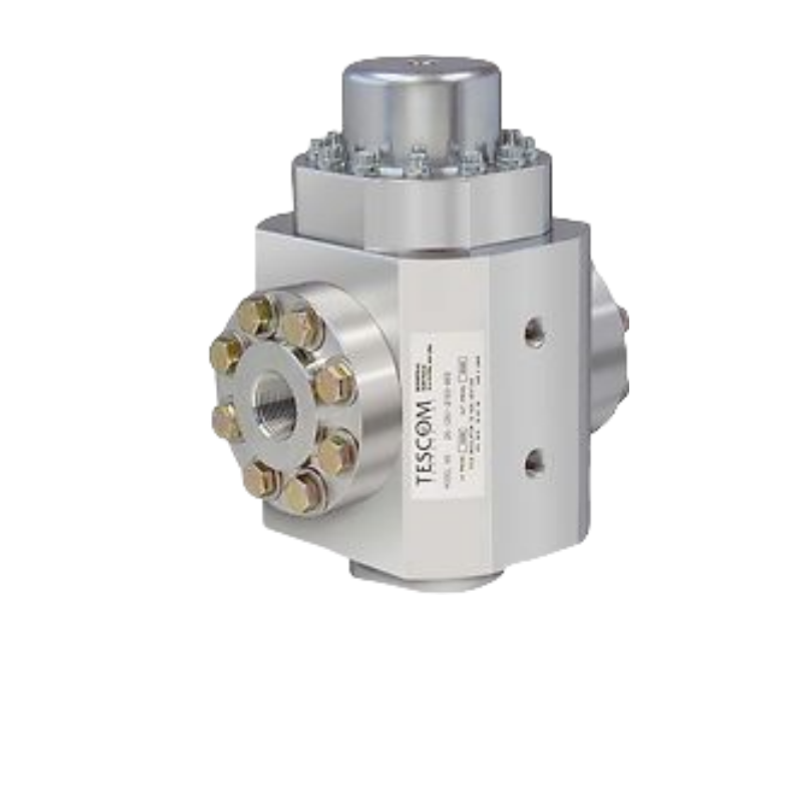

Picture show:
