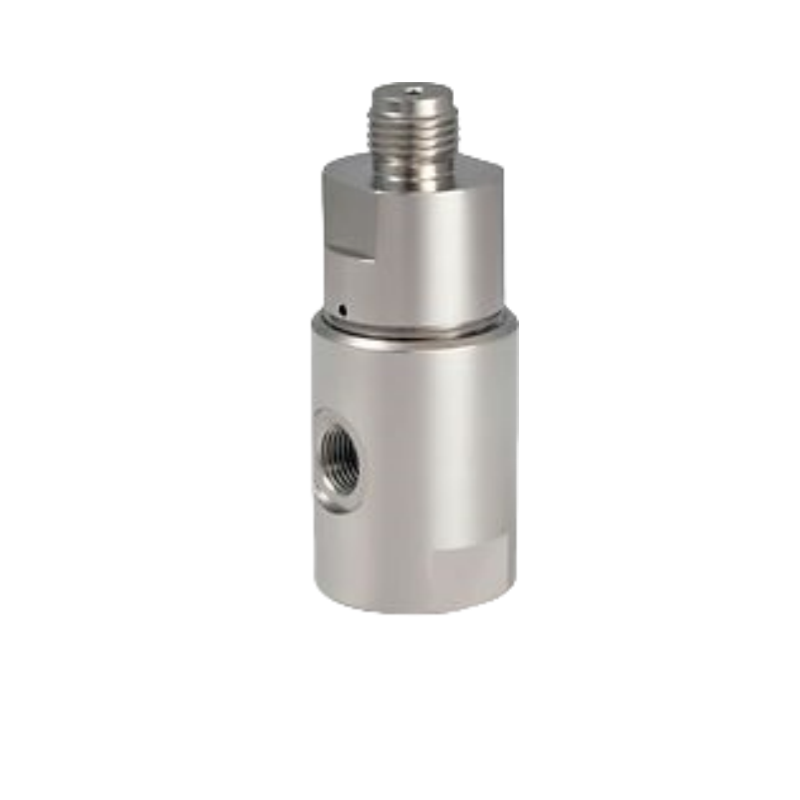

TESCOM BE Series Two Stage Pressure Regulator
BE Series regulator functions alone, as a pilot source or can be used to convert most low pressure regulators into a two-stage pressure reducer. Ideal for use in rough cut regulator, can be combined with a one-stage regulator to create a two-stage regulator, tee-ed in for a pilot source and non-venting.
Features
1.Material: Nickel-plated Aluminum, Brass, and 316 Stainless Steel
2.Positive shutoff for leak integrity
3.Reverse decaying inlet characteristic for sensitive equipment applications
4.Preset at factory for a set of standard operating conditions
5.Low flow applications: Cv = 0.02
Specifications
Pressure Rating ：Maximum Inlet Pressure: 6000 psig / 414 bar
Maximum Outlet Pressure: See Part Number Selector
Body Material：Brass, Nickel-plated Aluminum, 316 Stainless Steel
Piston Material：Brass (Brass and Aluminum bodies only)
316 Stainless Steel (316 Stainless Steel bodies only)
Seat Material：PTFE, CTFE, Polyimide
O-Rings：Buna-N, Viton®, Ethylene Propylene (E.P.), Urethane
