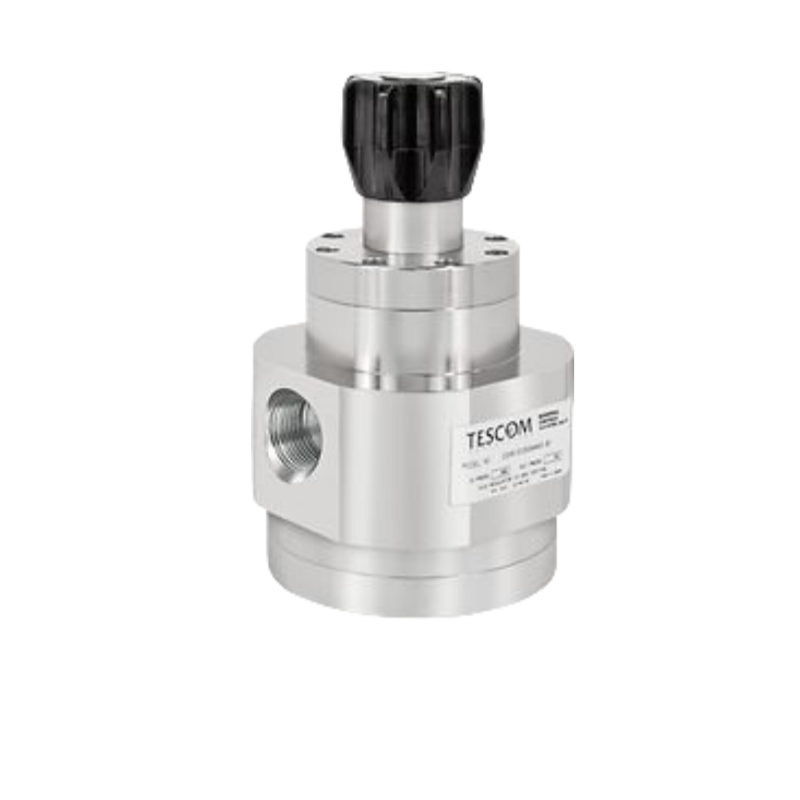

TESCOM DG Series Single Stage Regulator
DG Series single-stage regulator provides a compact size with high flow capability greater than 1000 SCFM / 28,300 SLPM. The large diaphragm and balanced main valve design provide lower droop (larger usable flow range) than competitive designs. Available in spring or dome loaded configurations. Ideal for use in purging, blanketing, high flow inerting, heat-treating and shielding gases and performs well at very low pressure differentials such as Dewar-supplied processes. Suitable for multi-drop breathing air stations.
Features
1.Cv = 10 in a compact design
2.Diaphragm sensing provides greater accuracy and sensitivity
3.Available in spring or dome loaded configurations.
4.Dome/air actuated compatible with TESCOM ER5000 Electropneumatic Controllers
Specifications
Maximum Inlet Pressure：300 psig / 20.7 bar
Outlet Pressure Ranges：0-20, 0-50, 0-100, 0-150 nd 0-250 psig / 0-1.4, 0-3.4, 0-6.9, 0-10.3 and 0-17.2 bar
(0-300 psig / 0-20.7 bar dome load only)
Material：Body, Bonnet, Back-cap: 316 Stainless Steel
Main Valve Seat: Buna-N 90, Ethylene Propylene 80, Chemraz 75 or Viton
Diaphragm: Gylon
O-Rings：Buna-N, Ethylene Propylene 80, Chemraz 75 or Viton
The Related Products:
TESCOM Model Recommendations:
Pressure Reducing Valves:
26-1765-24-247
26-2091A24S272
44-2263-241
44-2263-241 (duplicate entry)
44-2260-942-151
44-4660S94-018
44-2263-242
26-1065-24
26-1766-26
26-1064-24
26-1062-24
26-1063-24
44-1123-24
26-1765-24-071
44-1163-24
54-2062D24
Control Valves:
44-1116-24
26-1065-24-760
44-2263-241
26-1061-24
26-1765-26
26-1764-26
26-1766-26
44-1767-24
SG1P6162
