Features

1.10 Ra microinch / 0.25 micrometer internal surfaces

2.Full internal Electropolish is available

3.Metal-to-metal body to diaphragm seal for high leak integrity

4.Choice of free poppet or tied diaphragm

Specifications

Pressure Rating：Maximum Inlet Pressure: 3500 psig / 241 bar

                            Outlet Pressure Ranges: 30, 60, 100, 150 psig / 2.1, 4.1, 6.9, 10.3 bar

Body Material：316L Stainless Steel Electropolish or 316L VAR Stainless Steel Electropolish

Diaphragm：316L Stainless Steel

Valve Seat：PCTFE or Teflon PFA

Valve Spring：316 Stainless Steel

The  Related Products:

TESCOM Model Recommendations:

Pressure Reducing Valves:

26-1765-24-247

26-2091A24S272

44-2263-241

44-2263-241 (duplicate entry)

44-2260-942-151

44-4660S94-018

44-2263-242

26-1065-24

26-1766-26

26-1064-24

26-1062-24

26-1063-24

44-1123-24

26-1765-24-071

44-1163-24

54-2062D24

Control Valves:

44-1116-24

26-1065-24-760

44-2263-241

26-1061-24

26-1765-26

26-1764-26

26-1766-26

44-1767-24

SG1P6162

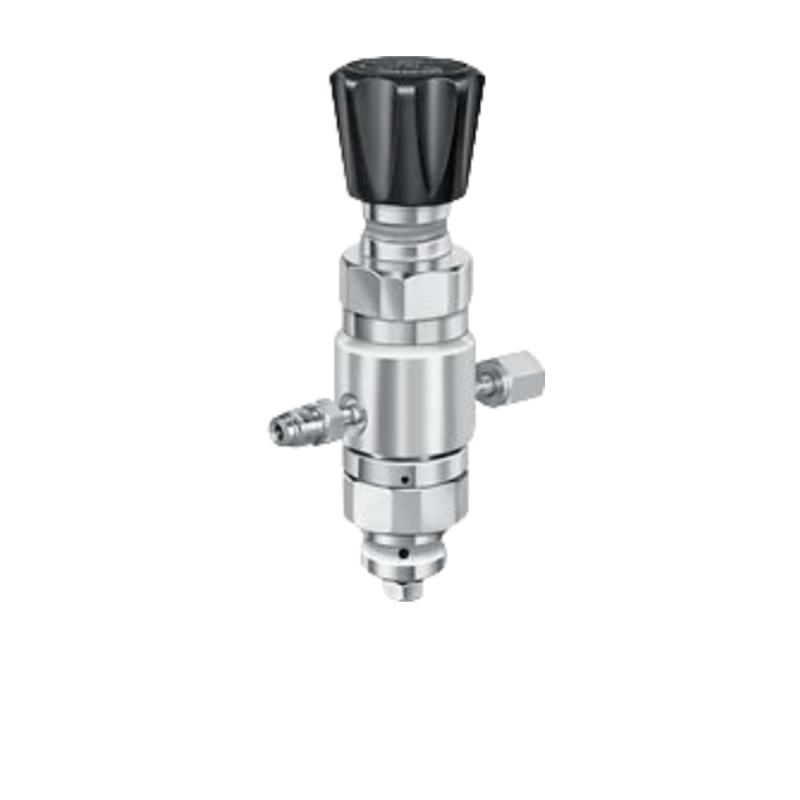

Picture show:
