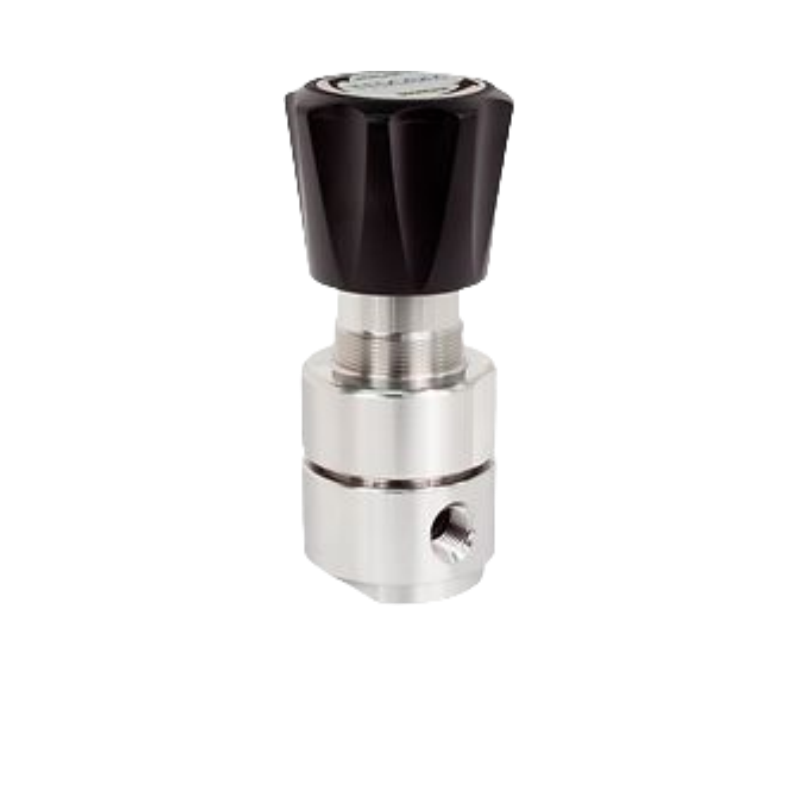

TESCOM 44-2200 Series Single Stage Regulator
44-2200 Series is a compact, lightweight high purity single-stage regulator for specialty, flammable, and industrial gas flows of less than 5 SCFM / 141 SLPM. Its diffusion-resistant metal diaphragm seal ensures gas purity and integrity. Ideal for use in laboratory and point-of-use gas systems, sampling systems, zero, span and calibration analyzer gases, specialty and industrial gas cylinder regulator and chromatograph flame detector fuel supply.
Features
1.Compact
2.Designed to minimize contamination and provide accurate regulation of any corrosive, noncorrosive, or toxic gas
3.Brass model provides added economy for control of non-corrosive media
4.Metal-to-metal diaphragm to body seal ensures minimum inboard and outboard leakage
Specifications
Maximum Inlet Pressure：400, 3500 psig / 27.6, 241 bar
Outlet Pressure Ranges：0-25, 0-50, 0-100, 0-250, 0-500 psig / 0-1.7, 0-3.4, 0-6.9, 0-17.2, 0-34.5 bar
Body Material：316L Stainless Steel, Brass, Hastelloy or Monel
Seat Material：Teflon
Bonnet：300 Series Stainless Steel, Brass
Diaphragm：316 Stainless Steel, Elgiloy
The Related Products:
TESCOM Model Recommendations:
Pressure Reducing Valves:
26-1765-24-247
26-2091A24S272
44-2263-241
44-2263-241 (duplicate entry)
44-2260-942-151
44-4660S94-018
44-2263-242
26-1065-24
26-1766-26
26-1064-24
26-1062-24
26-1063-24
44-1123-24
26-1765-24-071
44-1163-24
54-2062D24
Control Valves:
44-1116-24
26-1065-24-760
44-2263-241
26-1061-24
26-1765-26
26-1764-26
26-1766-26
44-1767-24
SG1P6162
