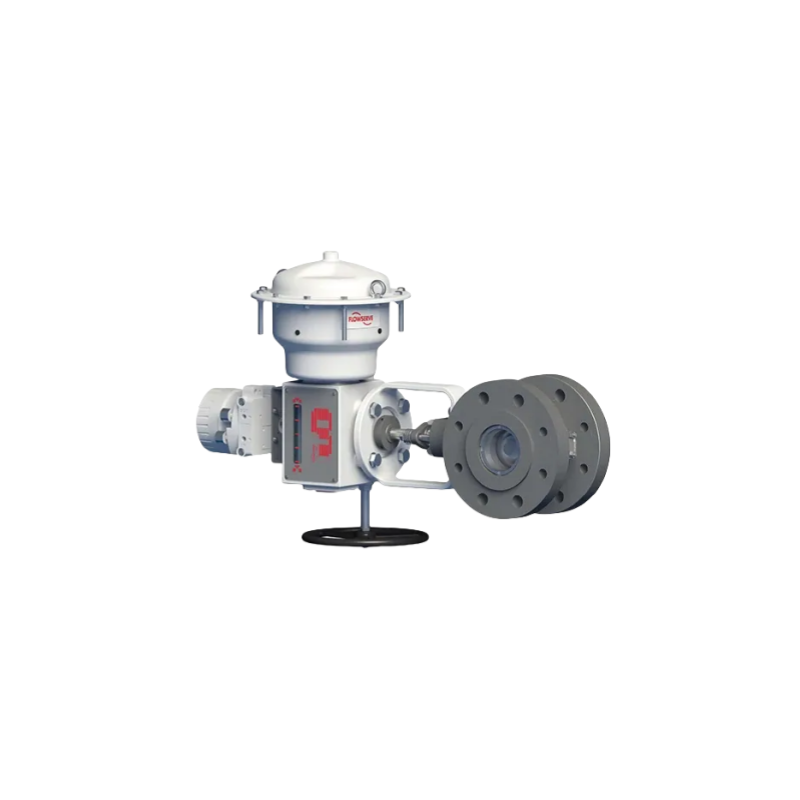

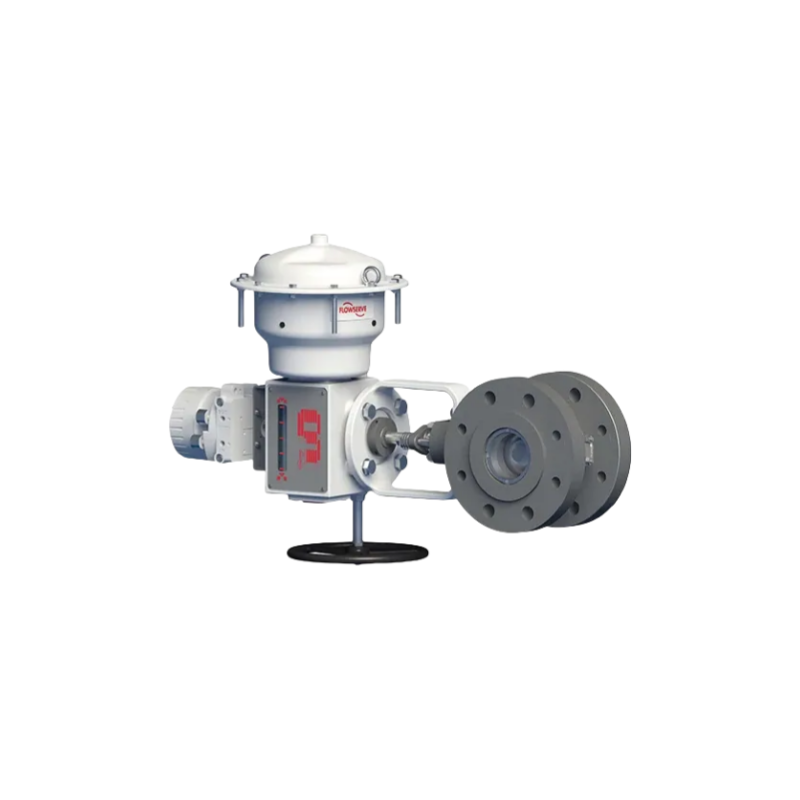

Flowserve MF 4 Eccentric Plug

The Valtek MF 4 eccentric rotary plug control valve is for applications demanding higher rangeability, precise control and higher flow capacity.

Details

FEATURES and BENEFITS

1. Unobstructed flow-path provides 70% greater flow capacity for a given valve size

2. Shaft is designed to safety requirements of ASME B16.34 to prevent the stem from being removed while the valve is under pressure for increased safety

3. Polygon connection between the shaft and plug provides precise control and substantially longer service life
