Features

1.316L Stainless Steel barstock regulator body design

2.FDA/USP compliant designs are available

3.Clean Service Certification of Compliance is available: Includes actual material certification, weld records, and bill of materials

4.15 or 32 Ra microinch / 0.38 or 0.81 micrometer body surface finish is standard

5.Precise pressure control

6.Gauge port is available

7.ASME BPE 2009 compliant design

Specifications

Maximum Inlet Pressure：150 psig / 10.3 bar

Outlet Pressure Ranges：Spring (handknob): 0-10, 0-25, 0-50, and 0-100 psig / 0-0.69, 0-1.7, 0-3.4, and 0-6.9 bar

                                         Spring Bias and Dome: 0-100 psig / 0-6.9 bar (See Part Number Selector for more details)

Body Material：316L Stainless Steel

Seat Material：Teflon®, PEEK-OPTIMA® or PEEK-Classix®

Friction Sleeve：Inner: Teflon®

                            Outer: 316 Stainless Steel

Diaphragm & Valve Guide：316 Stainless Steel

The  Related Products:

TESCOM Model Recommendations:

Pressure Reducing Valves:

26-1765-24-247

26-2091A24S272

44-2263-241

44-2263-241 (duplicate entry)

44-2260-942-151

44-4660S94-018

44-2263-242

26-1065-24

26-1766-26

26-1064-24

26-1062-24

26-1063-24

44-1123-24

26-1765-24-071

44-1163-24

54-2062D24

Control Valves:

44-1116-24

26-1065-24-760

44-2263-241

26-1061-24

26-1765-26

26-1764-26

26-1766-26

44-1767-24

SG1P6162

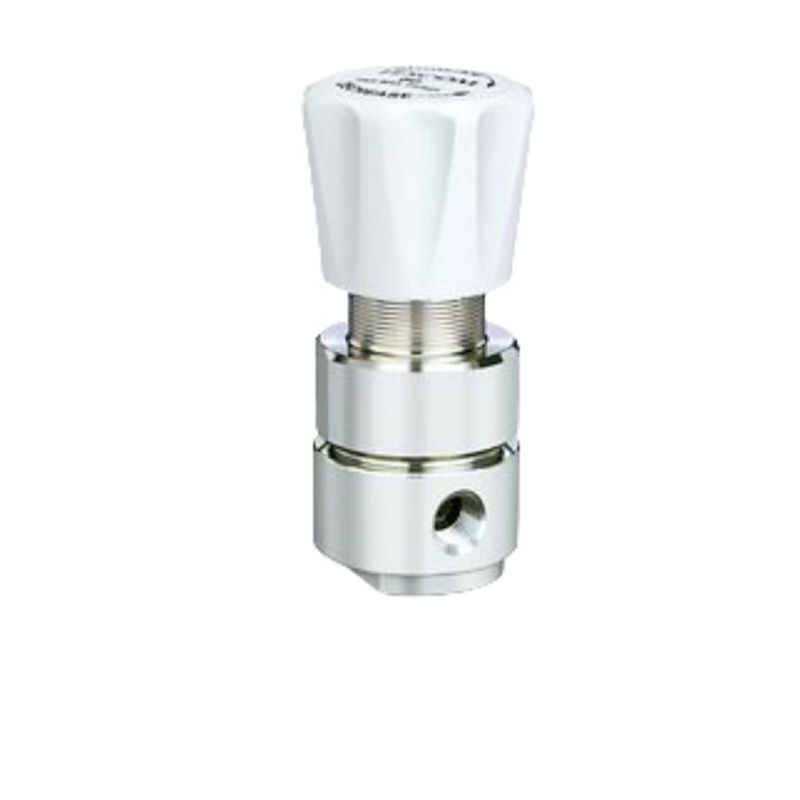

Picture show:
