Features

1.Removable valve assembly module permits easy repair

2.Excellent sensitivity through a wide range of pressure settings

3.Piston style sensor offers extra safety and reliability

4.Unbalanced stem assists positive shutoff

5.Inlet and outlet gauge ports are standard

6.Venting is standard; regulator vents to zero psig / bar in all pressure ranges

Specifications

Maximum Inlet Pressure：Stainless Steel: 10,000 psig / 690 bar

Brass: 6000 psig / 414 bar

Outlet Pressure Ranges：0-500, 0-800, 10-1500, 15-2500, 25-4000, 50-6000 psig

                                         0-34.5, 0-55.2, 0.69-103, 1.0-172, 1.7-276, 3.4-414 bar

Material：Body: Brass, 303, or 316 Stainless Steel

                           Main Valve Seat: Vespel

                           Vent Valve Seat: CTFE

                           O-Rings: Buna-N

                           Back-up Rings: Teflon

Remaining Parts：300 Series Stainless Steel

The  Related Products:

TESCOM Model Recommendations:

Pressure Reducing Valves:

26-1765-24-247

26-2091A24S272

44-2263-241

44-2263-241 (duplicate entry)

44-2260-942-151

44-4660S94-018

44-2263-242

26-1065-24

26-1766-26

26-1064-24

26-1062-24

26-1063-24

44-1123-24

26-1765-24-071

44-1163-24

54-2062D24

Control Valves:

44-1116-24

26-1065-24-760

44-2263-241

26-1061-24

26-1765-26

26-1764-26

26-1766-26

44-1767-24

SG1P6162

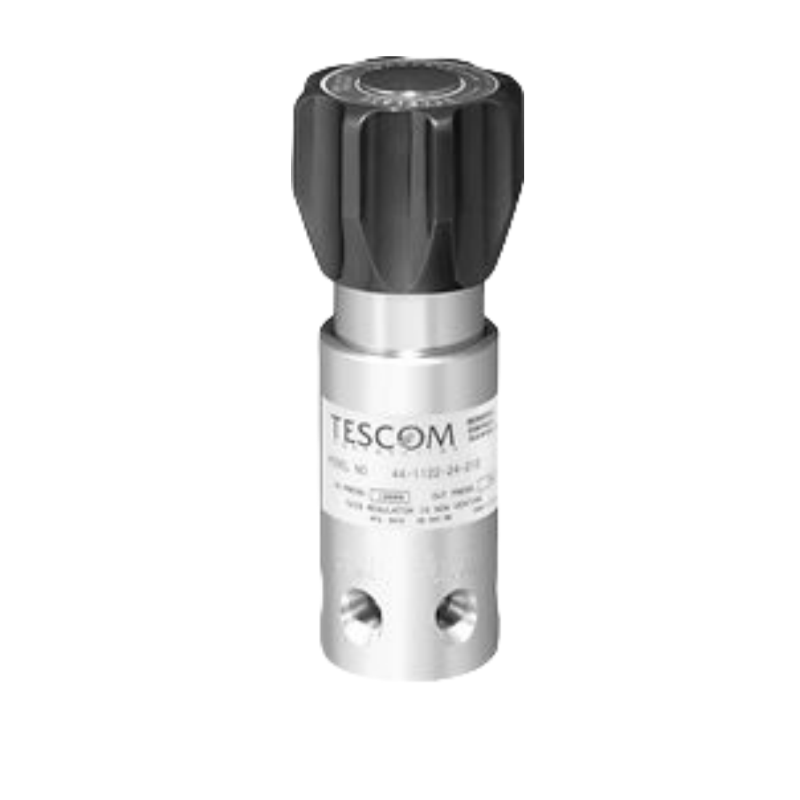

Picture show:
