Features

1.High flow: Cv = 0.7 or 2.0 (optional)

2.Piston sensed

3.Adjustable bias pressure ranges are available

4.Venting (captured)

5.Compatible with TESCOM?s Air Actuators and ER5000 Electropneumatic Controllers

Specifications

Pressure Rating：Maximum Inlet Pressure: 6000 psig / 414 bar

                            Outlet Pressure Ranges: 50-1500 psig / 3.4-103 bar

Material：Body: 303 Stainless Steel, 316 Stainless Steel, Brass, Chrome-plated Brass

                            Main Valve Seat, Gasket: CTFE, Vespel

                            Back-up Ring: Teflon

O-Ring：Buna-N, Viton, Ethylene Propylene, Kalrez

Trim：300 Series Stainless Steel, 17-4 PH Stainless Steel, Brass

The  Related Products:

TESCOM Model Recommendations:

Pressure Reducing Valves:

26-1765-24-247

26-2091A24S272

44-2263-241

44-2263-241 (duplicate entry)

44-2260-942-151

44-4660S94-018

44-2263-242

26-1065-24

26-1766-26

26-1064-24

26-1062-24

26-1063-24

44-1123-24

26-1765-24-071

44-1163-24

54-2062D24

Control Valves:

44-1116-24

26-1065-24-760

44-2263-241

26-1061-24

26-1765-26

26-1764-26

26-1766-26

44-1767-24

SG1P6162

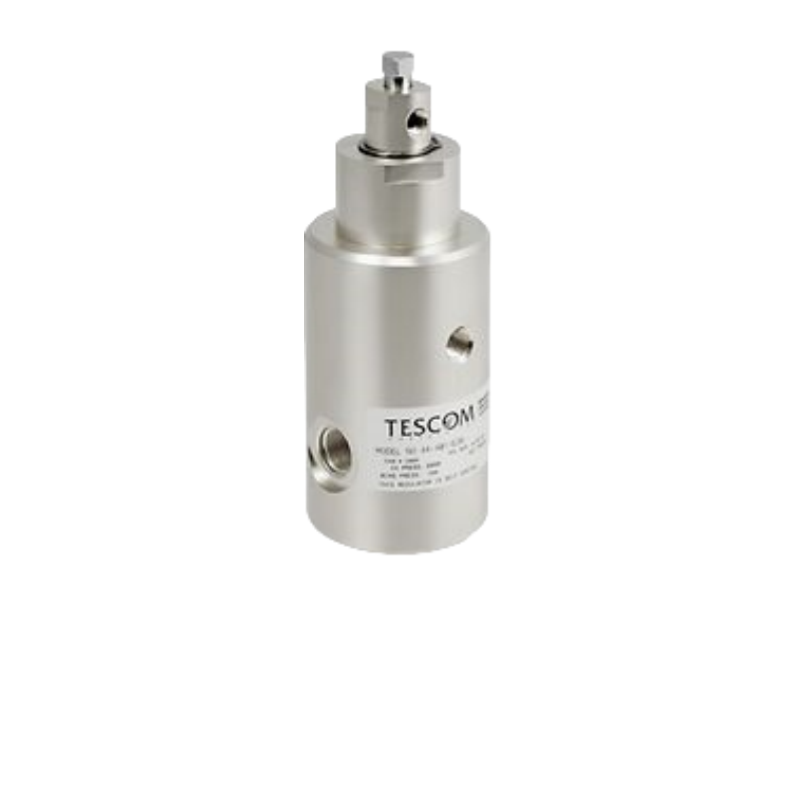

Picture show:
