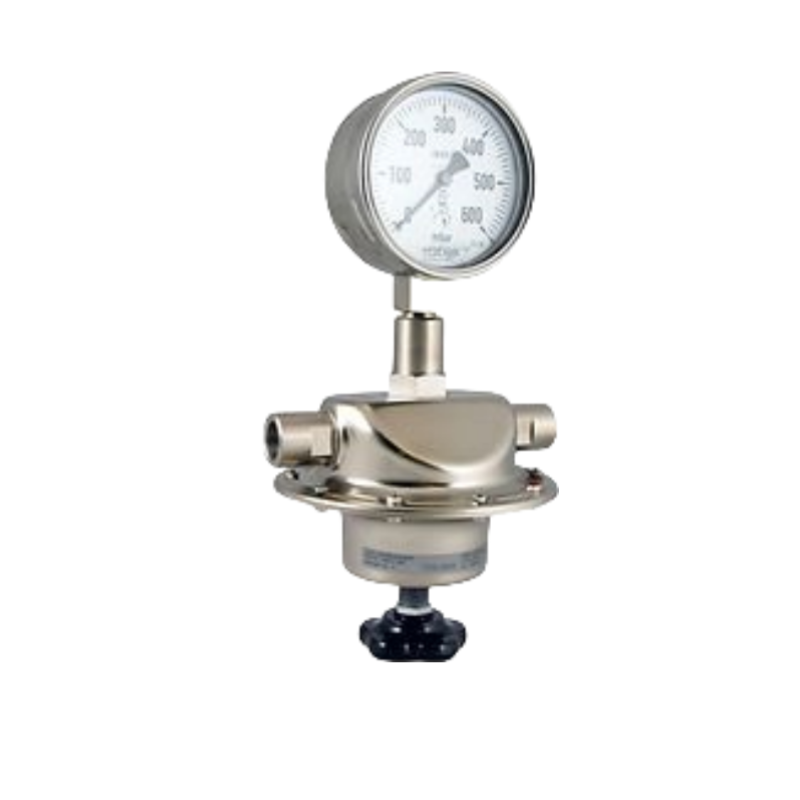

TESCOM Regulus 3 Pressure Regulator Gas
Regulus 3 in-line pressure reducer is extremely sensitive (mbar range) for gas purity up to 5.0 (99.999 Vol %) with positive shut-off seal. Ideal for use where very low outlet pressure is requested in combination with low flows, point-of-use regulator in central gas supply systems, in machines or in combination with a first-stage reducer as a cylinder pressure reducer, laboratory and production testing.
Features
1.Precise pressure control in the mbar range
2.Accurate and reliable pressure control
3.Positive shutoff seal
Specifications
Maximum Inlet Pressure：290 psig / 20.0 bar
Outlet Pressure Ranges：0.15-1.5, 0.3-3, 1.5-15, 1.5-14.5, 2.2-21.8 inch-Hg
5-50*, 10-100, 50-500 mbar, 0.10-1.00, 0.15-1.5 bar
*Min inlet pressure of 3.0 bar req.
Fluid Media：Non-corrosive gases, oxygen and liquid gases, recommended for gas purity up to 5.0, not suitable for acetylene
Material：Body: Nickel-plated Brass
Diaphragm: NBR, wetted side PFEP covered
Seat: NBR
The Related Products:
TESCOM Model Recommendations:
Pressure Reducing Valves:
26-1765-24-247
26-2091A24S272
44-2263-241
44-2263-241 (duplicate entry)
44-2260-942-151
44-4660S94-018
44-2263-242
26-1065-24
26-1766-26
26-1064-24
26-1062-24
26-1063-24
44-1123-24
26-1765-24-071
44-1163-24
54-2062D24
Control Valves:
44-1116-24
26-1065-24-760
44-2263-241
26-1061-24
26-1765-26
26-1764-26
26-1766-26
44-1767-24
SG1P6162
Picture show:
Application area
