Features

1.Cartridge valve design incorporates 10 micron filter to protect the regulator seat and makes service simple

2.Optional neoprene diaphragms provide exceptional sensitivity for precise pressure control

3.User-friendly model number enables the specifier to select optional gauges, relief and shut-off valves, and cylinder connections as part of the regulator assembly.

Specifications

Pressure Rating：Maximum Inlet Pressure: 4500 psig / 310 bar

                             Maximum Outlet Pressure

                             15, 25, 50, 125, 250 psig

                             103, 172, 345, 862, 1724 kPa

                             1.0, 1.7, 3.4, 8.6, 17.2 bar

Body Material：Stainless Steel, Nickel-Plated Brass

Seat Material：PCTFE, Polyimide*

                        *Per ASTM D 6456-99 Type II Class 1M (Meldin® 7021 or Vespel® SP-21)

Diaphragm Material：316 Stainless Steel, Neoprene

The  Related Products:

TESCOM Model Recommendations:

Pressure Reducing Valves:

26-1765-24-247

26-2091A24S272

44-2263-241

44-2263-241 (duplicate entry)

44-2260-942-151

44-4660S94-018

44-2263-242

26-1065-24

26-1766-26

26-1064-24

26-1062-24

26-1063-24

44-1123-24

26-1765-24-071

44-1163-24

54-2062D24

Control Valves:

44-1116-24

26-1065-24-760

44-2263-241

26-1061-24

26-1765-26

26-1764-26

26-1766-26

44-1767-24

SG1P6162

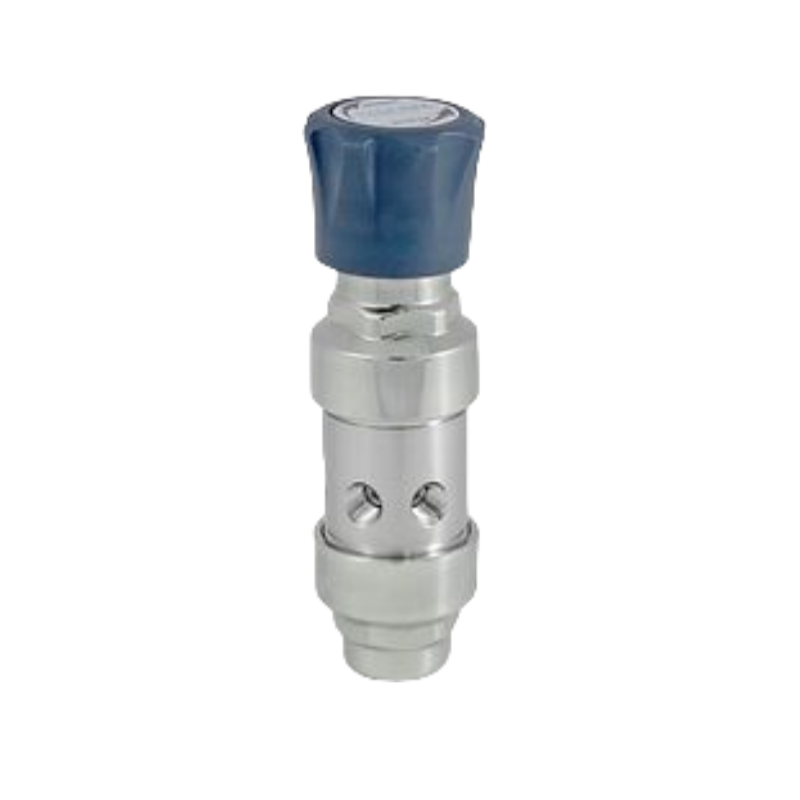

Picture show:
