Features

1.Exclusively designed to handle the demands of high purity bulk specialty gas delivery systems

2.Its proven design, high outlet capabilities, bubble-tight shutoff valve and standard Hastelloy trim provides dependability required for demanding regulator applications

3.Metal-to-metal sealed diaphragm

Specifications

Pressure Rating：Maximum Inlet Pressure: 1500 psig / 103 bar

                            Outlet Pressure Range: 25-400 psig / 1.7-27.6 bar

Material：Body: 316L VAR Stainless Steel

                 Diaphragm: Elgiloy

                 Seat: PCTFE

                  Trim: Hastelloy

                  Valve: Hastelloy

Operating Temperature：-40°F to 140°F / -40°C to 60°C

The  Related Products:

TESCOM Model Recommendations:

Pressure Reducing Valves:

26-1765-24-247

26-2091A24S272

44-2263-241

44-2263-241 (duplicate entry)

44-2260-942-151

44-4660S94-018

44-2263-242

26-1065-24

26-1766-26

26-1064-24

26-1062-24

26-1063-24

44-1123-24

26-1765-24-071

44-1163-24

54-2062D24

Control Valves:

44-1116-24

26-1065-24-760

44-2263-241

26-1061-24

26-1765-26

26-1764-26

26-1766-26

44-1767-24

SG1P6162

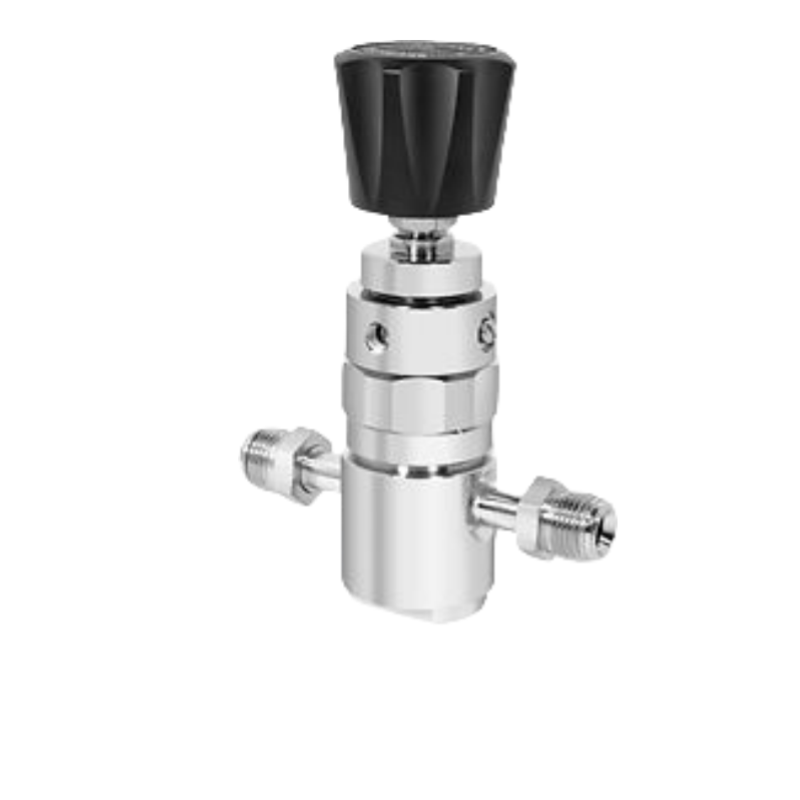

Picture show:
