Features

1.New stem and seal design extends service life in crucial high pressure water-based hydraulic applications

2.Specially designed seat and valve for excellent operation in hydraulic applications

Segregated captured venting

3.Tapered poppet design for better pressure control

4.Higher pressure models are available

Specifications

Pressure Rating：Maximum Inlet Pressure: 10,000 psig / 690 bar, 15,000 psig / 1034 bar

                             Maximum Outlet Pressure: Up to 10,000 psig / 690 bar standard

Material：Body: 316 Stainless Steel

                  Seat, Vent and Main Valve: 17-4 Stainless Steel, Vespel®

                  Back-up O-Rings: See Part Number Selector

Remaining Parts：300 Series Stainless Steel, 17-4 Stainless Steel, and Nitronic 60

Operating Temperature：-15°F to 165°F / -26°C to 74°C

The  Related Products:

TESCOM Model Recommendations:

Pressure Reducing Valves:

26-1765-24-247

26-2091A24S272

44-2263-241

44-2263-241 (duplicate entry)

44-2260-942-151

44-4660S94-018

44-2263-242

26-1065-24

26-1766-26

26-1064-24

26-1062-24

26-1063-24

44-1123-24

26-1765-24-071

44-1163-24

54-2062D24

Control Valves:

44-1116-24

26-1065-24-760

44-2263-241

26-1061-24

26-1765-26

26-1764-26

26-1766-26

44-1767-24

SG1P6162

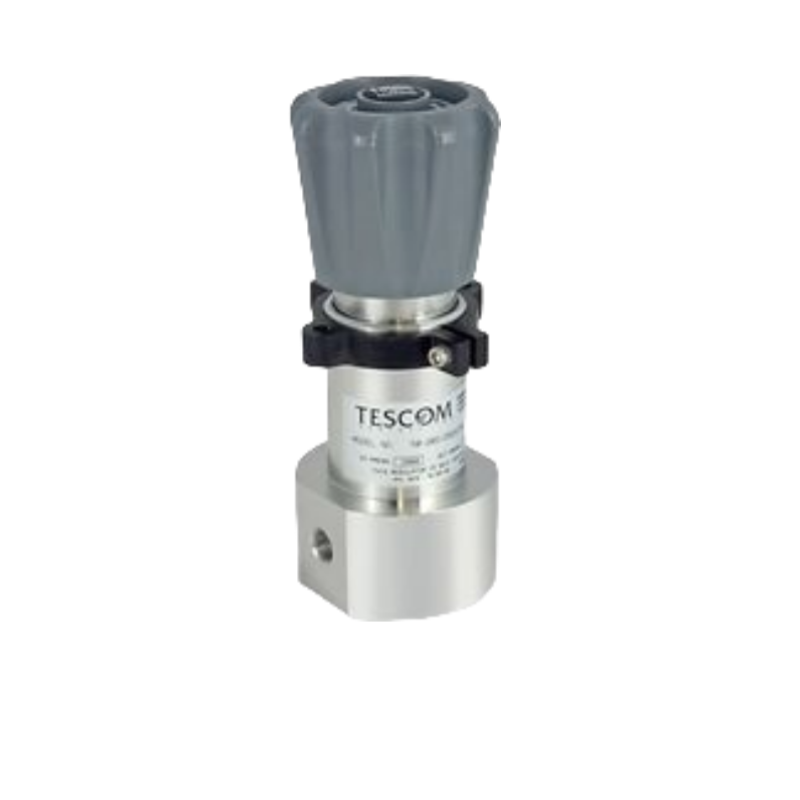

Picture show:
