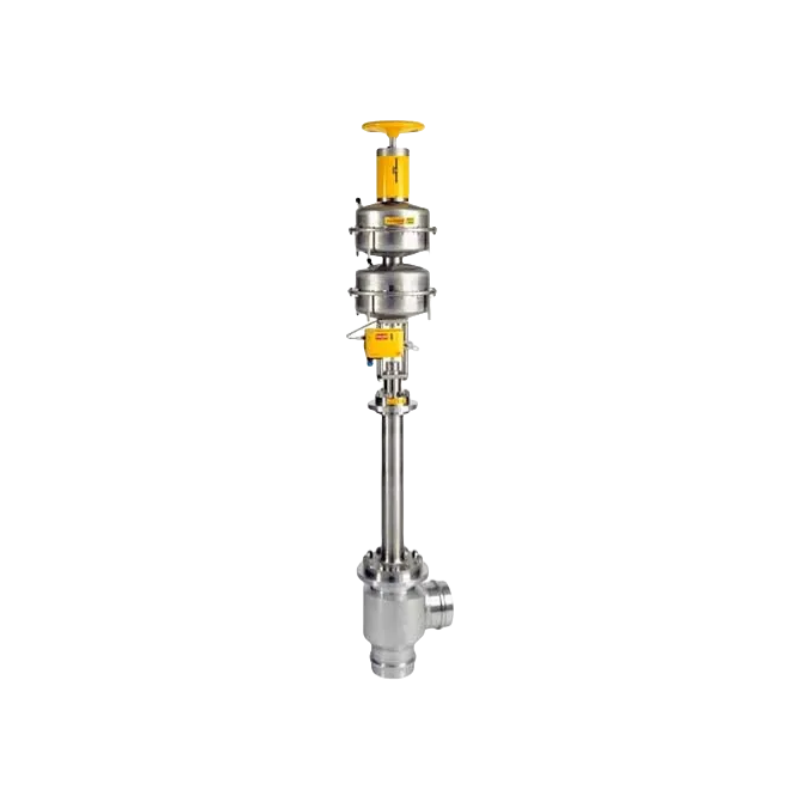

Flowserve ColdFlow Linear Globe/Angle Control Valves

By using an extended bonnet, the packing, gaskets and seals of ColdFlow valves are protected from cryogenic temperatures, thus ensuring their sealing properties. Optional special gaskets and packing can be used to operate at temperatures as low as -69 °C. Depending on the application, Flowserve cryogenic valves are available with a top entry design for the easy maintenance of valves located in a cold box or with a simple extended bonnet attached to the valve body.

Details

FEATURES and BENEFITS

1. Coldbox valve for air separation applications

2. Optional use for LNG

3. Aluminum body

4. Top entry design for most valve sizes

5. seperable plug for easy maintenance
