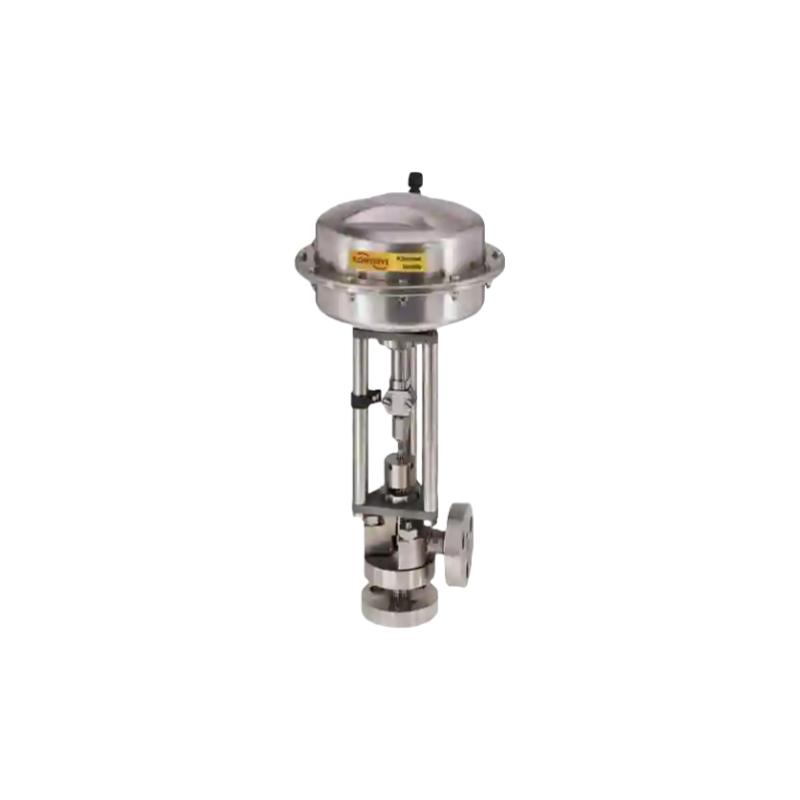

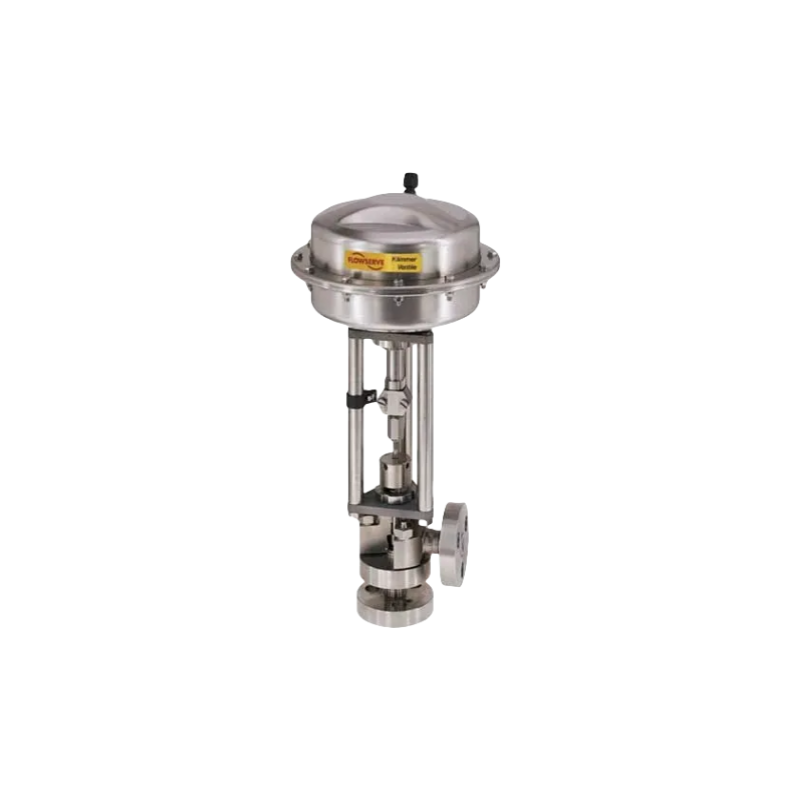

Flowserve HpFlow Linear Globe/Angle Control Valves
High pressure applications up to 60,000 psi or PN 4000 for very special needs. With the unique split body design it is possible to clamp the seat in between the body parts to handle these extreme pressure ratings. In combination with high pressure there is very often the need to handle also high diferential pressure. In this case the HpFlow series offers an axial multi-stage trim design.
FEATURES and BENEFITS
1. Different surface finish 0.4 μm to 0.6 μm
2. Bellows option (191300)
3. Standard (191400)
4. Aseptic version (191700/191800)
5. 3A approved
6. EHEDG approved
7. Pressure class up to PN25 (191400 version)
