TESCOM 44-1500 Low-Pressure Regulator

44-1500 Series high flow/low pressure regulator controls outlet pressures up to 600 psig / 41 bar. Large area piston provides accurate pressure control and cycle life superior to diaphragm sensed regulators when applied to heavy duty cycling. Features a segregated / captured vent for hydraulic or pneumatic media and is available in two outlet spring ranges. Optional dome or air loaded versions for remote operation or for use with the ER5000 Electropneumatic Controller for automation. Ideal for use in hydraulic and pneumatic testing.

Online consultation

Details

Features

1.For gaseous and liquid media

2.Segregated and Captured? vent design is standard

3.Balanced valve design ensures stable downstream pressure

4.6000 psig / 414 bar maximum inlet

5.Low droop

6.Large sensor for accurate pressure control

Specifications

Maximum Inlet Pressure：6000 psig / 414 bar

Outlet Pressure Ranges： Spring Load: 0-200, 0-400 psig / 0-14, 0-28 bar

Air/Dome Load: 0-600 psig / 0-41 bar

Material：Body: 316 Stainless Steel or Brass

40 Micron Filter: Bronze

Main and Vent Valve Seats: Vespel SP21

Back-up Rings: Teflon

O-Ring：Buna-N, Viton, Kalrez, Ethylene Propylene

The Related Products:

TESCOM Model Recommendations:

Pressure Reducing Valves:

26-1765-24-247

26-2091A24S272

44-2263-241

44-2263-241 (duplicate entry)

44-2260-942-151

44-4660S94-018

44-2263-242

26-1065-24

26-1766-26

26-1064-24

26-1062-24

26-1063-24

44-1123-24

26-1765-24-071

44-1163-24

54-2062D24

Control Valves:

44-1116-24

26-1065-24-760

44-2263-241

26-1061-24

26-1765-26

26-1764-26

26-1766-26

44-1767-24

SG1P6162

Picture show:

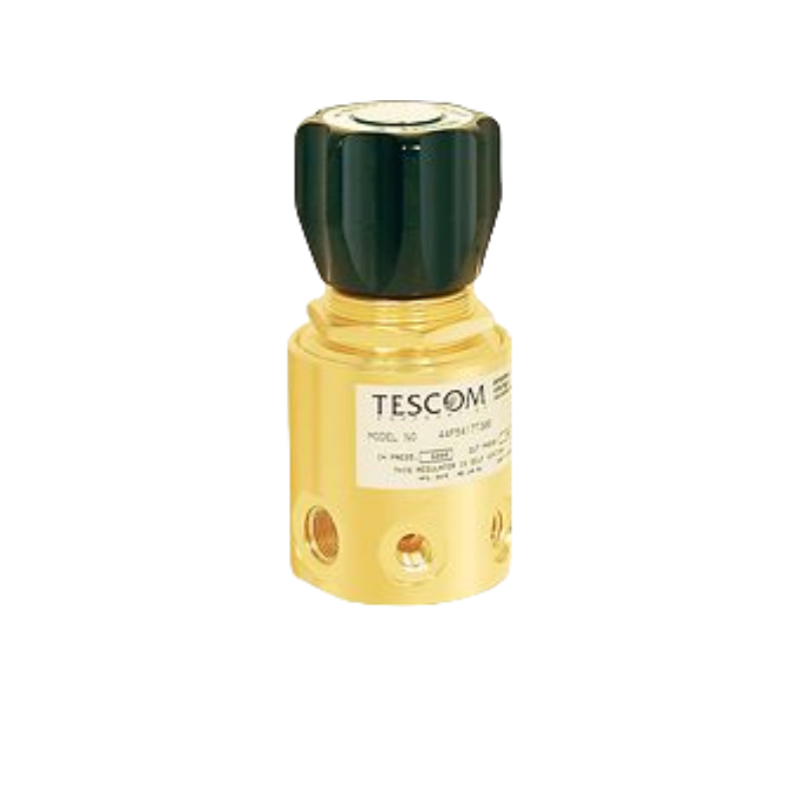

TESCOM 44-1500 Low-Pressure Regulator
