Features

1.Compact size (3"""" / 76 mm high) and constructed with lightweight materials

2.Available in 316 Stainless Steel, Brass, or Aluminum body construction

3.Elgiloy® diaphragm provides accurate and stable pressure control

4.Minimal internal volume allows for rapid purging and carry-over

6.Corrosion resistant

Specifications

Pressure Rating：Maximum Inlet Pressure: 3500 psig / 241 bar

                            Outlet Pressure Ranges: 0-30, 0-60, 0-100 psig / 0-2.1, 0-4.1, 0-6.9 bar

Material：Body: 316 Stainless Steel, Brass or Aluminum

                 Diaphragm: Elgiloy®

                 Seat: CTFE1, Teflon® or Vespel®

                 Friction Sleeve (inner): Teflon®

Remaining Parts：316 Stainless Steel or Brass (on Brass models)

The  Related Products:

TESCOM Model Recommendations:

Pressure Reducing Valves:

26-1765-24-247

26-2091A24S272

44-2263-241

44-2263-241 (duplicate entry)

44-2260-942-151

44-4660S94-018

44-2263-242

26-1065-24

26-1766-26

26-1064-24

26-1062-24

26-1063-24

44-1123-24

26-1765-24-071

44-1163-24

54-2062D24

Control Valves:

44-1116-24

26-1065-24-760

44-2263-241

26-1061-24

26-1765-26

26-1764-26

26-1766-26

44-1767-24

SG1P6162

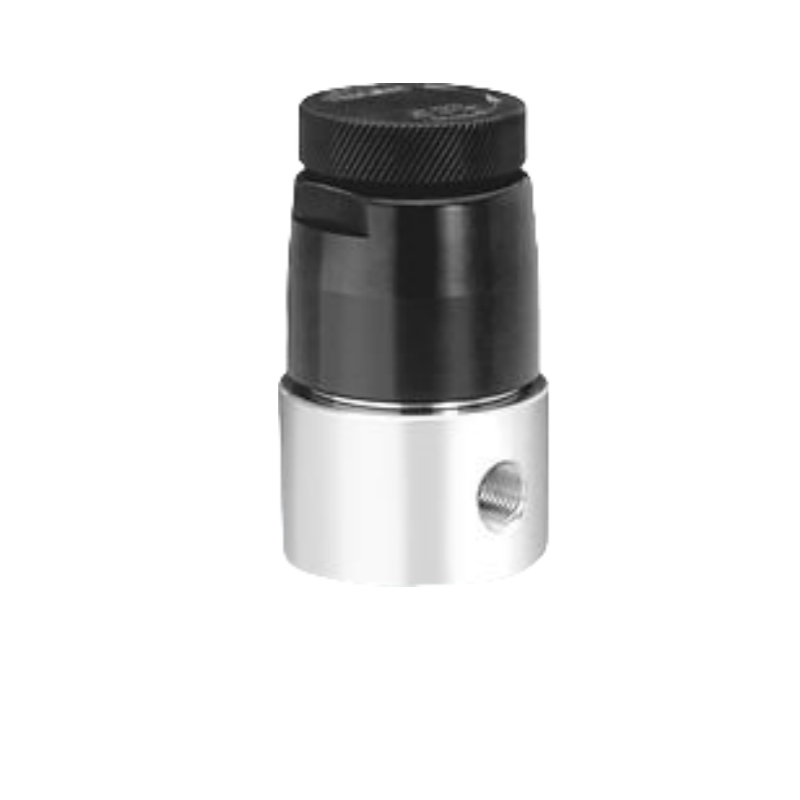

Picture show:
