Features

1.Accuracy ± 1% of control pressure range

2.Easily adjusted, low torque handknob control, dome and air loaded versions are available

3.Hardened Stainless Steel seats

4.Safe and reliable piston-style sensor

5.Panel mounting is standard

Specifications

Maximum Inlet Pressure：15,000 psig / 1034 bar

Control Pressure Ranges：0-500, 0-800, 10-1500, 15-2500, 25-4000, 50-6000, 200-10,000, 300-15,000 psig

                                           0-34.5, 0-55.2, 0.69-103, 1.0-172, 1.7-276, 3.4-414, 13.8-690, 20.7-1034 bar

Material：Body: 316 Stainless Steel

                 Seat and Poppet: 17-4 Stainless Steel

                 O-Ring: See Part Number Selector

                 Valve Seal: Vespel

                 Remaining Parts: 300 Series Stainless Steel

The  Related Products:

TESCOM Model Recommendations:

Pressure Reducing Valves:

26-1765-24-247

26-2091A24S272

44-2263-241

44-2263-241 (duplicate entry)

44-2260-942-151

44-4660S94-018

44-2263-242

26-1065-24

26-1766-26

26-1064-24

26-1062-24

26-1063-24

44-1123-24

26-1765-24-071

44-1163-24

54-2062D24

Control Valves:

44-1116-24

26-1065-24-760

44-2263-241

26-1061-24

26-1765-26

26-1764-26

26-1766-26

44-1767-24

SG1P6162

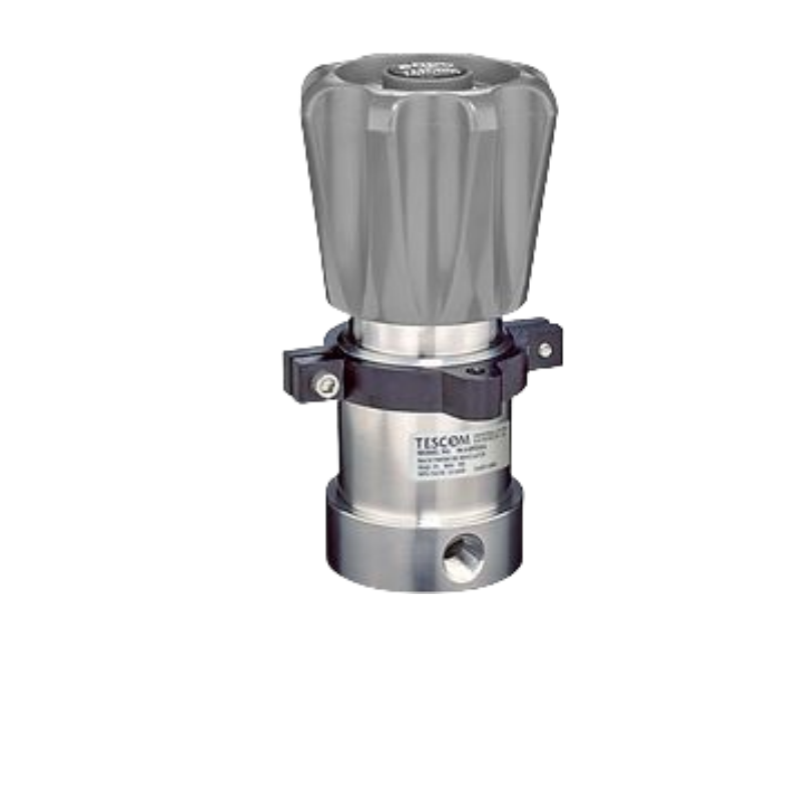

Picture show:
