Features

1.Economical

2.Compact design

3.Piston sensed design is safe and reliable

4.Adjustable stop limits maximum outlet pressure

5.Choice of Stainless Steel or Brass construction

6.Venting model is available

Specifications

Pressure Rating ：Maximum Inlet Pressure: 6000 psig / 414 bar

                            Outlet Pressure Range: 0-2500 psig / 0-172 bar

Material：Body: Brass or 316 Stainless Steel

                Bonnet: Brass, 300 Series Stainless Steel

                Seat: Teflon

                O-Ring: Viton-A

                Back-up Ring: Teflon

Remaining Parts ：Brass Body: Brass and 300 Series Stainless Steel

                              Stainless Body: 316 Stainless Steel

The  Related Products:

TESCOM Model Recommendations:

Pressure Reducing Valves:

26-1765-24-247

26-2091A24S272

44-2263-241

44-2263-241 (duplicate entry)

44-2260-942-151

44-4660S94-018

44-2263-242

26-1065-24

26-1766-26

26-1064-24

26-1062-24

26-1063-24

44-1123-24

26-1765-24-071

44-1163-24

54-2062D24

Control Valves:

44-1116-24

26-1065-24-760

44-2263-241

26-1061-24

26-1765-26

26-1764-26

26-1766-26

44-1767-24

SG1P6162

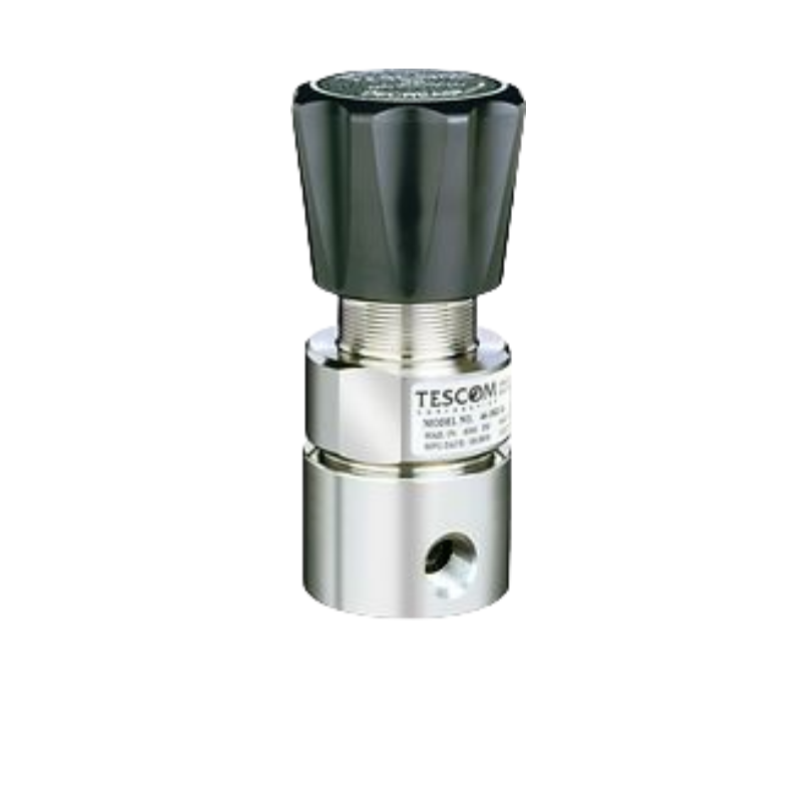

Picture show:
