Features

1.Up to Cv = 5.0 flow capacity

2.Gylon® diaphragm

3.Low droop, high flow

4.Five outlet pressure ranges

5.Accurately regulates pressures up to 250 psig / 17.2 bar

6.Welded sanitary connections and tube ends are available

Specifications

Pressure Rating：Maximum Inlet Pressure: 300 psig / 20.7 bar

                             Outlet Pressure Ranges

                            0-20, 0-50, 0-100, 0-150, 0-250 psig / 0-1.4, 0-3.4, 0-6.9, 0-10.3, 0-17.2 bar

Material：Body: 316L Stainless Steel

                 Diaphragm: Gylon®

                 Seat, Valve: Ethylene Propylene

                 O-Rings: Ethylene Propylene

                 Valve Spring: Elgiloy®

                 Remaining Parts: 316 Stainless Steel

Operating Temperature：-20°F to 300°F / -28°C to 148°C

The  Related Products:

TESCOM Model Recommendations:

Pressure Reducing Valves:

26-1765-24-247

26-2091A24S272

44-2263-241

44-2263-241 (duplicate entry)

44-2260-942-151

44-4660S94-018

44-2263-242

26-1065-24

26-1766-26

26-1064-24

26-1062-24

26-1063-24

44-1123-24

26-1765-24-071

44-1163-24

54-2062D24

Control Valves:

44-1116-24

26-1065-24-760

44-2263-241

26-1061-24

26-1765-26

26-1764-26

26-1766-26

44-1767-24

SG1P6162

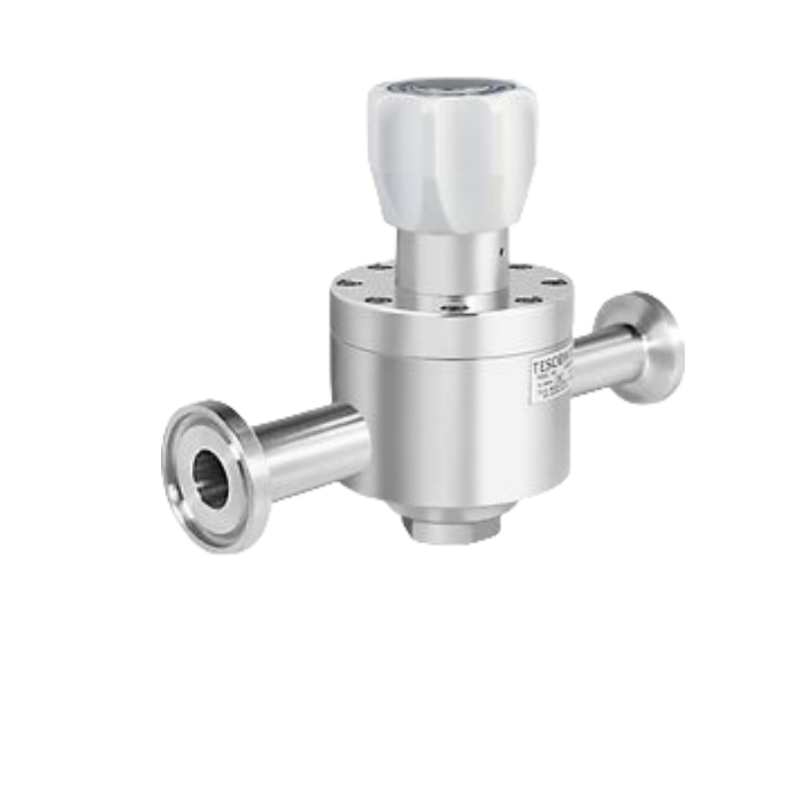

Picture show:
